Carburetor or Fuel Injection? Which is best for your ride

CFI fuel injection Edelbrock fuel injection, multi-port motorcraft 2150 Edelbrock Carburetor

I was speaking with a customer the other day about modifications on his engine and I brought up the possibilities of adding a throttle body injection system. He laughed as he told me absolutely not, “I know how to work on a carburetor and I know how to start a carbureted car”. Fair enough and certainly a respectable response. There are some very distinct differences between an engine that is fuel injected and one that is carbureted. That may sound like a “duh” statement but how much thought have you really put in to making the decision on how you will deliver fuel to your engine. All engines require three things to run, when you take away all the electronics and the processor and the shielded circuits from the new “modern” vehicles the engine will still need just three basic things to operate and run; air, fuel and ignition.

K&N air filterstop fuel dragster  Turbo Charger
You engine runs more on air than it does fuel, you need the fuel, don’t get me wrong, but air is a major contributing factor to engine performance. For many years aftermarket performance air filters, such as K&N filters, have been very popular with performance minded individual. These filters provide very good filtration but allow considerably more air flow than the factory filter. Even if you do not want to invest in a K&N Filtration system, buy a quality air filter for your car, dust and debris destroy and engine and many aftermarket air filters do not have the same micron rating as the factory filter, in addition, many aftermarket filters are not built as strong and will be sucked into the air cleaner housing allowing huge amounts of unfiltered air into the engine without your knowledge. The new car offerings from several manufacturers are trying to reach customers performance and economy expectations by adding turbo chargers on smaller engines. Top Fuel dragsters and Funny cars use blowers, a large number of race cars use superchargers (blowers) and turbochargers when looking for increased raw horsepower from their engines. Air is important and the more you can get into the engine the more power you can make. The recommended air/fuel ratio for a complete efficient combustion of the fuel is 14.7:1. That number does vary slightly based on the quality and the type of fuel, 14.7:1 for normal pump gas, 6.4:1 for alcohol and 14.5:1 for diesel fuel. Normal pump gas will add to that variable when taking quality of fuel and octane rating into account. To sum it up though, you need between 13 and 14 times as much air as you do fuel to run an engine efficiently. We aren’t using “efficiently” in this discussion as a reference to fuel economy, we are using it as a measure of how well the engine is performing to burn the fuel completely. More air, more fuel, bigger boom. Try this, break out your old oxy-acetylene cutting torch and fire it up, get a good weld flame and throttle the oxygen lever, gets super hot doesn’t it. Leaning the engine out, using more air than necessary, will make for a hot fire in the combustion chamber but, just like the cutting torch, you will begin to cause damage to the valves and pistons due to the excessive heat. Run the mixture too rich and the fire cools and the engine makes less power and begins to become polluted with unburned fuel which, ultimately, creates soot and carbon build up that robs power even after the correction to air/fuel mixture has been made. Adding a turbo charger or blower compresses air into the cylinder, making the air more dense, with a 14.7:1 air/fuel ratio you will still have complete combustion but you will also probably end up with an engine “ping” or spark knock. Now, there are several other factors that may contribute to the spark knock, like ignition or valve timing, but we aren’t going into that realm in this post. When compressing the air into the combustion chamber you raise the peak pressure of the cylinder which creates the knock. Mixing a little more fuel in will still provide for complete combustion but will be a slightly cooler explosion reducing the occurrence of spark knock.

top fuel launch Edelbrock drag car
Many fuels have been used over the years to power various types of engines, water being among them ( think steam locomotive). We are talking about volatile fuels though, Nitro-methane, alcohol, gasoline. There are several variations of fuels used to power internal combustion engines (I.C.E.). The engines are built for the specific fuel they will be using to power the unit. Delivery is important, hence the purpose of this post, when relative to the power the builder is expecting to achieve from the engine and each method has its own pros and cons. While we have briefly explained the importance of air, fuel delivery is somewhat more complex. The amount of fuel that needs to be delivered can be affected by the size of the fuel lines, the pressure and flow of the pump and by the design of the engine as well. A Top Fuel dragster uses 4-5 gallons of fuel for each ¼ mile pass and over 10 gallons total during a run when factoring in the burn out at the beginning of the race to the breakdown at the end. Delivery of that much fuel is akin to pouring a bucket of fuel into the engine. I’m not all together sure I could empty a 5 gallon bucket of fuel, controlled, in less than five seconds, that is a huge achievement in fuel control. Looking at another area of performance, F1 cars are limited to 100kg of fuel per race, approx. 36 gallons. The engineers for the engines in these cars have a huge task, how to meter the fuel delivery for optimum performance and to achieve the economy needed to complete the race. Climate, altitude, track surface and the amount of cautions all play into the equation. Weight is also a critical factor in these vehicles, more weight equals a slower car that will require more fuel to provide the desired performance. Weight is a factor in nearly every automobile racing event and measuring the fuel to “just enough” is crucial when races are won or lost by fractions of a second. Manufacturers also look at how the fuel will be metered to balance the same variables that F1 is looking at to balance power and economy. This is obvious when you look at the amount of light weight components used in cars, lighter weight equals, in this case, better fuel economy which helps manufacturers reach the C.A.F.E. standards sets by the Government. We may not like it but all those temporary spare, space saving, spares are used for that reason, a large number of new cars don’t even have a spare tire and have been replaced with 12 volt compressors and can of fix-a-flat. Thinner sheet metal, more plastic materials, cheaper window regulators, all factor into the weight calculations used when trying to reach a myriad of Government standards. Next time you are annoyed by how cheap the materials used in you new modern car seems to be, write your representative in Washington, he/she has had as much to do with it as the manufacturer of your car. Weight and performance become part of the equation when choosing your method of fuel delivery and needs to be balanced, again, to meet the needs of the vehicle and your desired performance level.
Ignition systems seems fairly straight forward, make a spark and the fuel/air mixture explodes creating the energy and opposing force to push the piston down in the cylinder. Seems simple but we still have to look at the same things we did before. Air, fuel and ignition are all related and each has to be balanced with the other to reach the desired effects. The earliest systems were magneto type and produced a very high voltage spark, typically higher than what a modern distributor type ignition system does. Magneto type ignitions are similar to those found in many lawn mower or outboard boat engines now. The primary difference, other than exceptionally high spark output, 20,000 volts in some cases, is that a magneto does not require a battery or outside power source to operate. An automotive magneto, instead, uses a distributor (not so in small engines and outboards) similar to what we are familiar with but has a generator built into it using the magnets to build the energy for the spark, hence the name “magneto”. As automobile electrical systems evolved so did their ignition systems, with the use of more sophisticated batteries and the addition of better generator/alternator charging systems the complexity of the magneto was traded for a simpler distributor design using breaker points, and a condenser, much like the magneto, but uses and ignition coil to supply the spark and the engine mounted charging system components to provide the energy to charge the coil. This system worked well and produced very little feedback, that would interfere with electrical accessories, such as radios. To increase performance distributors were equipped with two sets of ignition points, this improved the performance of the breaker points at higher engine speeds to guarantee a hot spark. Obviously we have evolved from there and use hall effect style switches to electronically communicate with the engine control systems to provide spark. Early electronic ignition systems used essentially the same type distributor we had become used to and installed the hall effect and pick up in place of the points. Current model vehicles typically use either a crankshaft or camshaft position sensor to communicate with the engine controls for proper spark timing and use multiple coils to provide spark more directly to the spark plug.

electronic ignition magneto ignition small engine magneto Distributor with points
Now, you may have more questions now than you did before this post, I understand that. In the next post we will look at the distinct differences between carburetors and the different fuel injection systems but you, the hobbyist, enthusiast or just someone who wants better performance, or fuel economy from their classic car need to consider all the variables outlined here. It all may seem confusing but only when you have taken the time to ensure that all of the systems work together can you realize your goal. For instance, it personally makes no sense at all to upgrade your engine to a fuel injection system only to use a breaker point ignition system, you are not going to achieve the precise spark control necessary to operate with the efficiency expected from an injected vehicle and therefore will be disappointed with the results. Often times, that is where you will find the negative on many products, from someone that really did not do their research and make sure that all the components work together. Due to circumstances of their own making all of a sudden the product sucks and the individual fails to understand, or won’t admit, that they failed, not the product. This is also not the area to go cheap, spending the extra few dollars necessary to purchase quality components from reputable vendors and reputable companies, such as Edelbrock, Holley, MSD, Mallory, K&N and Moroso, just to name a few will decrease the possibility of a premature part failure. Also, buying from a reputable company gives you a resource to talk to when you do have difficulties. There is a huge amount of quality aftermarket equipment available on Amazon and Ebay, and I’m not here to bash them, but if you run into a problem you are less likely to receive professional assistance from those vendors. What you are trying to do is make life easier on yourself and others that may drive your car, not more difficult. A few vendors we may recommend to source some of the items you may need to achieve your performance goals are Old Dog Street Rods, Jeg’s and Summit Racing.
Look forward to the conclusion of this post in the next few weeks, in the mean time check out a few of these links that will help you understand the fuel injection systems, air induction systems and ignition systems available for your classic car, muscle car, street or rat rod.

Edelbrock Electronic fuel injection installation and performance.

MSD Ignition systems, ignition systems 101

Holley Avenger/Dominator Fuel Injection systems.

K&N Air filter testing

Mallory conversion to electronic ignition







The 440 Six Pack

440 six pack2 440 six pack OLYMPUS DIGITAL CAMERA



The fabled six pack. Even die hard Mopar enthusiasts will agree, the 440 six-pack is as much of a legend for Chrysler as the Hemi. Chrysler was doing pretty good in the late sixties, even their budget line valiant and dart vehicles were difficult to keep in stock on dealer lots. Things were going very well for Chrysler and its car lines in 1969, very well. Still the engineers felt they had to do something to earn their pay, what they come up with was essentially and aftermarket add on for the 440 Magnum. The largest cubic engine that Chrysler ever produced performed well with a four barrel carburetor, was strong and virtually bullet proof in its performance but with the proper equipment it would become a monster. Engineering began looking at previous tri-power set ups, such as those offered by Pontiac in years prior, and worked with Edelbrock and Holley to make a match made in heaven for Mopar enthusiasts, and a Hell on earth for the competition.

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA

A custom aluminum high rise intake was developed by the engineers at Chrysler and the engineers at Edelbrock and Working with Holley a trio of carburetors were mounted with the center carburetor being the “feed” carburetor for the engine. When the accelerator was fully depressed the fore and aft carburetors would open, similar to secondary plates in a four barrel, and allowed over 1200 C.F.M. of air, mixed with the proper ratio of fuel, to enter the engine.



OLYMPUS DIGITAL CAMERA







The roar heard from the engine was unlike any other Chrysler engine to date, or since, under full power. This set up brought the overall horsepower rating of the 440 engine to 390, with a whopping 490 pound feet of torque this engine could pull the largest of the B bodied cars in the Chrysler stable. Mid-year 1969 the engine was offered, in limited vehicles packages. Only the Road Runner and Super Bee would see options for the 440 6 barrel and it was the Bee that deserves accolades for being the first car to sport the 440 six pack stickers. The engine was a huge success, leaving the first models as stripped down bad ass racers that owned the tracks where they were raced. These weren’t luxury cars, with pinned fiberglass hoods, steel wheels with chrome lug nuts clad in meaty Goodyear G70-15 tires these cars were built to go fast, even if you were just going to the grocery store.

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA
The 440 six pack was slightly different than the other 440 engines up to this point. The engineering team chrome flashed the valve guides to increase wear resistance and improve high speeds performance, to follow this pattern of a higher revving engine Hemi valve springs were used and the camshaft was milled slightly different. Molly rings were used to seal the combustion chamber and ignition came from a dual point distributor. This was truly an engine designed for performance, real, hot rod performance. Prior to these revisions the base 440 did well enough, it built nice horsepower for the racers and torque numbers made the engine a very popular choice for trucks and motor homes. This engine though, the 440 six pack, this was built to be loud and intimidating and had all the right stuff to back it up. With numbers near the performance of the Hemi, and at about a third of the price, sales shot through the roof, far exceeding anyone’s expectations, even Edelbrock could not keep up with the demand. Due to limitations in production, partially based on the ability for Edelbrock to manufacture the intake manifold in large enough numbers, production was limited to 3,384 units. This should, in no way, reflect poorly on Edelbrock, no one knew that demand was going to be so high for something offered mid-year.
As the model year ended Chrysler definitely knew they were onto something and when the ’70 model year vehicles were introduced the 440 six pack was featured prominently in numerous vehicles, one being the Coronet R/T. Engineering had also packed a few new things in the engine as well and, as a result, brought about the first engine that Mopar had built that was balanced externally. With the newer, heavier connecting rods for the engine the crankshaft had to be balanced externally. The intake manifold was now cast iron rather than aluminum. Aside from this and a better performing heat control valve in the right exhaust manifiold, the engine was virtually unchanged. Sadly, Chrysler only offered the 440 six pack for one more year and by 1972 this particular configuration of the 440 had passed on leaving us with a continued decline in engine performance that would last for another couple of decades.

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA Picture 111
Precision Restorations is very pleased to be a part of the build on a 1970 Coronet R/T currently in our shop. Along with the famed 440 Six pack this client is fortunate enough to have one of only a few teamed with a four speed and built here in St. Louis.

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA

This Coronet R/T also has the Dana rear end that will harness all the power from the engine and put it on the ground. With the only upgrade to this vehicle being an electronic ignition system this will be a factory fresh restoration when complete.
The owner of this Coronet R/T plans to drive this car but also plans to do with it what it was intended to do, race. Thanks to our friends at allpar.com, a site directed towards all things Mopar, we have some numbers that reflect the ability of this car. Many of you may be familiar with Ronnie Sox, if you aren’t you need to be.

ronnie sox2 ronnie sox ronnie sox3

Ronnie was the factory driver for Chrysler for a number of years along with owning his own race team. Mr. Sox is a tremendous character and a highly revered driver. Having been granted the opportunity to test these 440 six pack cars he was able to put down a sub 13 second run with a 12.98 in a ’69 Roadrunner. Following that up with a run in a 1970 Roadrunner he set a time of 13.46 in the quarter mile.



OLYMPUS DIGITAL CAMERA







I feel comfortable that this Coronet R/T can match these times consistently, especially with an engine putting out over 400 horsepower and over 500 pound feet of torque on a stock rebuild. Our only wish from this customer is loads of videos and photos when he launches this beauty down the track.
Look for additional posts on this car and what this customer has done to preserve and restore this car in future posts.

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA

Cadillac Fleetwood

fleetwood_emblem_cadillac_1_40 cadillac_fleetwood_steering-wheel_emblem_36

As we bid farewell to the 1961 Fleetwood Series 75 that recently acquired new pearl coat white paint, a light mechanical restoration as well as some interior work,  we thought it might be worthwhile to feature not only the car but provide you with some history of Fleetwood and what its name meant to Cadillac. The blog continues but first enjoy some before and after pics of what turned out to be an absolutely beautiful vehicle with a perfect pearled white finish.

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERADSC03345 OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA

Most of us are familiar with the Fleetwood series Limousines from Cadillac and the Fleetwood Brougham but do we really know the history. Lawrence Fisher, of “Fisher Body” has everything to do with Fleetwood. Like Fisher Body, Fleetwood was a carriage manufacturer, they built high end carriages designed to transport the affluent and were recognized as leaders in their field long before the automobile, or horseless carriage, came around.fleetwood body by fisherFleetwood car for Valentino

The Fleetwood Body Company we are familiar with was founded by Harry Ulrich in the nineteenth century in Fleetwood, Pennsylvania. While Harry may have founded and organized the name in the United States, Fleetwood has its true heritage in Europe. Henry Fleetwood of Lancaster England actually started the lineage of carriages that became so popular in England and well renowned during the 17th and 18th centuries. With their illustrious history of building high end carriages the Fleetwood Body Company applied their art to automobiles and developed that same reputation for elegance and sophistication as they had for their carriages. Destined to be part of Cadillac, Fleetwood was bought by Fisher Body in 1925, four years before General Motors bought all the remaining stock in Fisher Body.

1927 Fleetwood 1931 Cadillac 370A, Indianapolis pace car. 36-Cadillac-Series-75_DV-10_RMH-01 64_1934_cadillac_v16

The marriage between Cadillac and Fleetwood Body Company all started with the acquisition of Fischer Bodies by General Motors. In 1916 Lawrence Fisher joined his brothers, who had found Fisher Body in 1908, and was instrumental in bringing the Fisher Body name under the GM umbrella in 1919. Having established himself within General Motors, then President of GM, Alfred Sloan, appointed Lawrence to Cadillac General manager in 1925. Larry, as he was known, immediately started to work adding custom bodies which would be exclusive to Cadillac. Seeing the opportunity available, Fisher Body was able to purchase The Fleetwood Body Company, which General Motors eventually acquired when they bought the remaining shares of Fisher Body four years later in 1929. Fleetwood bodies were an option on all Cadillac vehicles from 1927 through 1934.

1938cadillacfleetwoodseries75limo0211 1942-cadillac-fleetwood 38cad1 39 fleetwood limo 1930-1940-cadillac-v-16-16

By 1938 Cadillac had made the Fleetwood name more exclusive and only offered Fleetwood bodies on Cadillac Series 75 or 90, even the inaugural year of the Cadillac Sixty Special could not be obtained with a Fleetwood body. Fisher supplied the first body for the Sixty Special in 1938, designed with the assistance of Harley Earl and Bill Mitchell it was still manufactured in the Fleetwood plant but still retained the Fisher name. Fleetwood had become a very exclusive market.
In 1947 the name Fleetwood first appeared, as a badge, on the deck lid of the Cadillac Sixty Special.

1947-Cadillac-Fleetwood_75-134841349171264 1947-cadillac-fleetwood-pic-25161-tmb cad47j 1947 cadillac fleetwood 75 sedan f3q

It showed up again in 1952 on the rear of the Series 75.

52 Fleetwood 52 fleetwood imperial

When The Series 70 Eldorado Brougham was released in 1957 it joined only two other models worthy of the Fleetwood distinction, the Sixty Special and the Series 75, no badges indicating that the vehicles were a Fleetwood body were placed on the vehicles.

57_Cadillac_Eldorado_Brgham 1957 Eldorado brougham 090929-08-1959_Cadillac_Eldorado_Brougham_interior brougham town car

The 1957 Brougham was the first Brougham to be paired with a Fleetwood body in twenty years. Fleetwood remained a stealth brand with no discs or moldings or crests celebrating the Fleetwood Body Company that had developed such a reputation with 300 years worth of high quality luxury coach building. That was the case until 1959 when production for the Brougham was moved from the Fleetwood plant in Detroit to Turin, Italy at Pininafarina. Although production was relocated Fleetwood was still handling the design and final details, because of this the Brougham received Fleetwood discs and moldings on the door sills.

59 series 75 59 fleetwood

Brougham production ceased in 1961 and in 1963 the Biarritz became the latest Cadillac to receive a Fleetwood body.

63 fleetwood 63cad1b



Biarritz also marked the return of a convertible for Fleetwood designers since the demise of the Series 90 in 1941.

cadillac-v16-series-90-town-cabriolet-1936 series 90

For nearly ten years Fleetwood would enjoy the exclusive status they had acquired with names such as Eldorado, Sixty Special and Series 75 being designated as sub-series vehicles of the Fleetwood line. Further integration in the 70’s brought the introduction of the Cadillac Fleetwood Brougham and the Fleetwood Limousine that would replace the Sixty Special and the 75 series before Fleetwood became a completely separate series of vehicles in 1985.

1972 Fleetwood Brougham3 1971 Fleetwood Brougham 1972 Fleetwood Brougham 1972 Fleetwood Brougham2
While the new front wheel drive C-body was being rolled out by General Motors in 1985 with a chassis that carried de Ville, the Electra for Buick and the Ninety-Eight for Oldsmobile, the Fleetwood remained a rear wheel drive vehicle and was known simply as the Fleetwood Brougham for ’85 and ’86.

1986 Fleetwood Brougham 1985 Fleetwood Brougham

Few other differences, aside from trim, can be found between the Fleetwood and the de Ville of this period. At the time de Ville was available with an optional d’Elegance package that quickly was turned into the Fleetwood package then morphed again into Fleetwood d’Elegance in 1987

1987broughamdelegance102309 cadillac-brougham-wheels

without a coupe until 1989.

FleetwoodBrougham coupe 1989_cadillac_fleetwood_coupe_00

The Sixty Special returned in 1987 and used a stretched version of the C-body and the Series 75, brought together again with Cadillac in 1985, used a slightly longer 134 inch wheel base versus the Sixty Specials 116” wheelbase.

1987-cadillac-15 sixty special

1985_cadillac_fleetwood_series_75_limousine_1_thumb2_lgw 1985-cadillac-fleetwood-series-75

Cadillac had begun to lose footing with their fans though and began to see reviews that were less than impressive when compared to the German manufacturers that were becoming very successful in their marketing efforts in the United States. Complaints of being under powered, the ride being harsh and poor handling prompted even more action from Cadillac and engine power increased steadily into the 90’s. After several years without a rear wheel drive coupe Fleetwood left the front wheel drive line up again in 1993 as the replacement for the ’92 model Brougham, this would also be the last year that the Sixty Special.

1993_Cadillac_Sixty_Special-1 1993 series 60

For its last year Cadillac equipped this series better than any other vehicle in their line up. Just as in models before, the Sixty Special was to be of the highest in luxury and driver comfort and convenience, for this reason there were options on this Sixty Special that were not available on any other vehicle in this class for Cadillac. Memory seating and an easy entry/exit system that moved the seat rearward when pushing the exit button when leaving the vehicle, and of course fender skirts that provided a more formal appearance than the deVille was capable of with full open wheel houses.

The end was upon the Fleetwood name but as a swan song was switched back to a rearwheel drive vehicle in 1993 using a slightly modified version of the D-body in which it had used with the Brougham a few years earlier.

1993-Cadillac-Fleetwood-limousine1 1996 fleetwood limo 1996 presidetnial limo 1993 fleetwood presidential limo 1993 stretched limo 1993_cadillac_fleetwood_brougham_limousine_98215518133213539

The Fleetwood was the longest production car made, at 225 inches, until production ceased on December 13th, 1996. Despite using Corvette LT1 derived engines in 1994 and the use of Fleetwood Commercial chassis on funeral coaches and limousines the Seville and the de Ville sold strong and the Fleetwood was officially retired form production to make room for more Suburban and Tahoe offerings from GM.

As we celebrate Fleetwood and recognize its demise it seems only fitting to carry away the name in the commercial vehicles it produced, namely ambulances and hearses.

1930CadV16_01_1500 ambulancewallpapers_cadillac_fleetwood_1963_1_b 1970-cadillac-ambulance-hearse-limo-fleetwood-royal cadillac-commercial-chassis-ambulance-superior-10  redcadillacambulance

Of course we can’t forget one of the most famous converted ambulances from Ghost Busters.

ghostbusters

It had been a good run, Fleetwood had prepared its own standard in which it would be carried to its final resting place.

Reagan_hearse 57 hearse 58 ambulance 1956HearsePassengerSide Cadillac-Fleetwood-Hearse-1970-07E3H523403034B Hearse hearse-full1

How it works, Automobile suspension, Front suspension

Heidts_Logo-300x122 rolling chassis OLYMPUS DIGITAL CAMERA Front suspension
Control arms, Coil Springs, sway bar, leaf springs, bushings ARRGGHHHHHHHHH!!! It’s just too much. Well let’s try and make sense of these terms and see just what these components do.

The Brush “Runabout”

1910-Brush-Runabout 1911 Brush Runabout 1910-Brush-Runabout2 Brush runabout
Alanson Brush and his “Brush Runabout” are credited with the first mass produced vehicle with a shock absorber. You may see little importance to this small hydraulic miracle, many car owners still don’t understand what importance a shock absorber has in controlling their ride, improving overall handling and improving brake effectiveness. You see, springs have been around for ages, leaf springs can be traced to the Egyptians and Siege machines used in Europe. Coil springs have also been widely used and, along with leaf springs, heavily used with auto manufacturers, namely Daimler-Benz used coil springs on many of their earliest vehicles. These systems may seem archaic now,(the “Runabout” used Hickory wood for its front axle), but provided the comfort clients of the turn of the twentieth century wanted. I am most happy that of all the suspension systems that may have carried over from the carriage manufacturers of the day the leather strap used on many personal and livery units were not deemed effective.

Early suspension, transverse mounted leaf spring

simple early Ford straight axle OLYMPUS DIGITAL CAMERAOLYMPUS DIGITAL CAMERA model a off road
With great thought to price as well as ride comfort most manufacturers used leaf type springs for their suspension. With the release of the Model T in 1908 the world saw one of the first innovations of automobile suspensions from Ford. To save weight and maintain the ride he expected, Ford used only one spring per axle and mounted them transversely. This design became very popular with many manufacturers although it was sometime later before shock absorbers would become important. With the “Runabout” Alanson Brush incorporated the shock absorber with the coil spring, much like a suspension that another man named McPherson is associated with. Alanson had worked with Oldsmobile and Cadillac before leaving to form his own car company in 1904, during this time he tried several different designs of his own and not until his brother wrecked his recently completed “Alanson Crestmobile” did he realize how important the shock absorber was to improved handling for the driver. While Brush motors enjoyed some relative success Alanson’s financial backer had other interests, absorbed by the U.S. Motor company in 1910 the “Runabout” disappeared in 1912 with the collapse of the company.

Shock Absorbers

c-10-front-suspension-and-crossmember-global-west OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA shock absorber
What sets the Brush automobile apart is the use of a hydraulic shock with a coil spring front suspension. There had been other types of shock absorbers, in 1897 A. Gimming used a rubber block just like what we see on many cars now, although the importance of this type of mount now is not the same as it was when introduced. Shocks are all about controlling the suspension and its rebound. A spring absorbs energy and releases energy, when going over a bump the spring absorbs the energy and then releases it by pushing back with equal or greater force. Obviously without some sort of damper this cycle will continue and the vehicle will continue to bounce after hitting a bump, a shock absorber does exactly that, absorbs some of the energy from the spring and controls the release of the energy as well.

Straight/solid Axle front suspensi0n

OLYMPUS DIGITAL CAMERA ifs
There are two primary types of front suspension and several variants of each. The most widely used on early vehicles was a straight axle, typically supported by leaf springs, either one or two, to support the vehicle, cargo and passenger weight. These were very simple, straight forward suspensions that were rugged but really provided little ride control, even if the customers weren’t aware of it at the time.

King Pins of the automotive world

ball joint straight axle king pin parts king pin rebuild king pin
Straight axles use a king pin or a ball joint to attach the spindle and u-bolts to attach the springs, springs were mounted in much the same fashion as today’s leaf spring vehicles, with pivots or slides that allow the spring to work as the overall length of the spring changes while the vehicle travels. Leaf springs are popular even today due to their load carrying ability and the simplicity in which they work. This type of suspension is still used today, particularly on heavy vehicles, you can find solid axle front suspensions on nearly every over the road truck. This is also still a very popular set up for hot rods, using axles set up with a “drop” helps a builder lower his ride with little effort and with the use of either a mono leaf or coil springs and shocks can achieve a decent ride, if spring rate is chosen correctly. Another type of spring used in conjunction with a straight axle is a torsion bar, torsion bars absorb the energy through a long rod attached to the axle and the frame, this set up is designed so that the twist in the rod supports the vehicle and the rod then twists during operation to absorb the energy. The biggest difficulty encountered with straight axle suspensions isn’t poor ride quality but actually poor handling. When driving over rough surfaces or imperfections in the road (pot holes), the suspension has a tendency to skip as one side reacting to the roughness begins to create a loss of control on the opposite side of the vehicle. Not being able to isolate the action of one front wheel lead to the adaptation of independent front suspensions.

Independent Front suspension

complete_sub_frame_67-69_camarofirebird_68-74_novaproducts644promo_pic ball joints Holden HK HT HG Front Suspension independent front suspension
More complex with more moving components independent suspensions greatly improved the handling experienced by those driving a solid axle car. The most common independent front suspension is one using upper and lower control arms to attach the spindle to the car and a coil spring and shock placed between or above the control arms. While many use coil springs there are numerous variants of the design, short arm/long arm systems have unequal length arms that keep the tire perpendicular to the road even over the harshest of bumps.

Torsion bar suspension

typical torsion bar set up Torsion bar suspension2 TorsionAireSuspension transverse mounted torsion bar style suspension

Torsion bar style suspensions are also used by many manufacturers with the control arm type suspensions.

McPherson Strut suspension

Stock Image of Misc. Car Parts steering
McPherson style front suspensions use a shock absorber and coil spring combination that attaches to the spindle in place of the upper control arm. This system was revolutionary in helping the designers to engineer lower hood lines and add more room for front wheel drive transaxles without sacrificing ride and handling.

Sway bar, Anti-roll bar

sway bar antiroll_explanation  swayBar2
While the springs (leaf, coil or torsion bar) support the vehicle and the shock absorbers control the energy stored and released by the springs, sway bars, or anti-roll bars control the vehicle. Using either a solid bar or a tube, the sway bar is attached to the frame and pivots inside of busings while the ends of the bar are attached, with links, to the lower control arm. Going back to our high school geometry we see how the pressure of the vehicle will cause the sway bar to apply equal force, like a torsion bar, to the opposite side of the vehicle. When getting onto and exit ramp and turning right the body will want to lean left. As the body begins to apply it’s weight the sway bar, or anti-roll bar, transfers the energy and raises the right side of the vehicle to maintain control. Different diameter bars are used based on the application, a heavier, thicker bar will be found on a track vehicle where handling is going to be tantamount to winning the race and passenger cars will have a slightly smaller bar to improve handling without sacrificing ride and drive quality.

Suspension bushings

performance bushing kit bushing1 Control_Arm_Bushings_20604st_04_z+1994_custom_chevy_truck_suspension_bushings+before_after_diagram
Vehicle suspensions are in constant movement, unless, of course, you’re stopped. Control arms pivot up and down, springs compress and expand, shocks are moving and all of this has to happen in such a way as to provide a better ride, better traction and better handling. Each of these components have to be mounted so they can move freely and still create some isolation between what the suspension is doing and the consumer driving the vehicle. In order to dampen the activity bushings are used in nearly every pivot point of the suspension. The most popular type of bushings are the standard rubber bushings they have used for years which provide for a great ride and a great deal of insulation from the roughness the vehicle may be traversing through at the time. While there are other types, another popular material for bushings is polyurethane. Polyurethane bushings are not as soft as a rubber bushing so more road feel will be transmitted through to the driver, however, being of a more dense material the polyurethane bushings provide for a better handling vehicle and control the changes a vehicle is thrust into easier. Polyurethane bushings, as well as other bushings made of material other than rubber, will typically be found in cars geared more towards performance.

Ball joints

ball joint  ball joint straight axle ball jointsHolden HK HT HG Front Suspension
Among all the various components found on a suspension one of the most critical is the common ball joint. Ball joints provide the connection between the vehicle and the tire/wheel. The wheel mounts on a spindle and the spindle is attached to the control arms with this part. For such a small component, built with a ball and socket design, it takes the absolute blunt force of the vehicle. When choosing replacement parts choose a quality piece that is serviceable with grease fittings. The ball joint allows the suspension to pivot up and down while maintaining proper tire angle and also allows the front wheel to turn left or right. This, again, is a very crucial piece of a vehicles front suspension and needs to be inspected, along with the rest of the suspension, for wear or damage regularly, a worn ball joint will lead to, eventually, the spindle coming loose from the control arm creating a loss of control.
As with Ball joints, always choose the best product to meet your needs. Determine how you plan to drive your vehicle and what you plan to use it for and then purchase quality parts, not necessarily the most expensive, but the highest quality. Most of these components are not difficult to service and replace but it isn’t easy work either, don’t waste your time and your money on a product that doesn’t have a good service life. As what some consider hobbyists we may enjoy working on our cars and trucks but mostly it is for improvement, not to re-do work that has already been done.
This is just a basic outline, we are often stuck with whatever suspension system our vehicle has but there are always ways to improve handling, ride and even vehicle stance. Coil springs can be cut to adjust ride height and custom made springs are available so that you don’t have to cut. Leaf springs can be mounted above or under the axle typically to change ride height and leafs can be added or removed based on what you expect from your suspension. Leaf springs can also be re-arched or built custom, based on your preference. Torsion bar type suspensions are the easiest to adjust ride height but, like other types of suspensions, the vehicle requires an alignment to ensure proper handling and to control tire wear. The most important thing to consider is the quality of the components you use. Research what you want to do, research the parts and search related forums online to discover the pitfalls of what you have planned. I also recommend that you keep in mind that anytime you make changes to ride height you also change the geometry of the vehicle and by changing this you are changing how weight is distributed and will affect handling and braking performance, possibly with adverse results. The result you want is a safe vehicle that handles well, rides nice and maybe, with changes in ride height, has a more aggressive stance.

For more information and explore all your options check out our partner Heidts Hot Rod and Muscle Car parts

Another source for quality parts, stock or performance is Jegs







Friday July 11 is Collector Car Appreciation Day

capital Mr_and_Mrs_Henry_Ford_in_his_first_car 1st benz



So, you thought Congress could not agree on anything. I get it, no matter what side of the isle you are on it seems Congress has difficulty performing, not this time though. The Senate recently passed S.Res.493 – A resolution designating July 11, 2014, as “Collector Car Appreciation Day” and recognizing that the collection and restoration of historic and classic cars is an important part of preserving the technological achievements and cultural heritage of the United States. Now, how they plan to reward you faithful enthusiasts for maintaining and preserving our automotive history is still unknown. I can guess that reduced taxes will not be part of a package to reward you for you efforts. What we can do is take advantage of this and move forward knowing we have preserved history. We all know what we do and why we like cars, some are more involved in preservation while many of us just want a more unique, personalized ride.
As we drive through the streets of nearly every city I find disappointment when I see buildings that were so rich in architecture being leveled for the next store, office building or parking lot. While some of these decisions for new buildings are based on brand imaging often times the owner or the contractor just deem the buildings too expensive to refurbish or renovate. Each time another building comes down it is another reminder of our loss of history. It is the same with cars and trucks as well as things such as farm implements.
You, the collector, the enthusiast, the gear head, or whatever distinction you prefer, provide a window into the past, not only of the automobile you drive but also of the culture of the time. The design, the dimensions, interiors and the accessories all speak about the era in which the vehicle was made. While the general public takes things like disc brakes and power steering for granted, many of the cars we, the car buffs, drive and enjoy were lacking that technology. What you have done is show that with small modifications a classic car can be modified to provide as good, if not better, handling and braking than modern vehicles, and look better doing it.
When we drive our classic cars we enjoy the attention received but what the casual observer does not recognize is that our classic cars are as well appointed as any new car you can buy. We install the heated seats, the sound systems, power window and lock mechanisms. We have every modern convenience at our finger tip, and we chose what we wanted, without having to choose thousands of dollars of things we didn’t want. As individuals, the car enthusiast extends his personality through his vehicle and takes pride in his or her automobile of choice, what works for one doesn’t have to be the mold for another. That Camaro or Mustang may be cool with a big engine swelling the engine bay but, as a lover of cars, we will still find inside of us a great deal of respect to that factory spec. restored Vega, it is about preservation after all.
As an enthusiast you are responsible for saving numerous vehicles from a scrap yard death, through your efforts, hard work and sweat we are able to enjoy vehicles that would otherwise not exist in society today and Precision Restorations wants to thank you for your efforts, keep up the good work.



351 Cleveland for 1971 Torino project puts out great numbers on the dyno





OLYMPUS DIGITAL CAMERA  Snapshot 2 (6-30-2014 4-36 PM)

To give a brief update, the 1971 Ford Torino GT convertible that we showed you in November when we cut the top off of the donor car is starting to go back together. We ran tests on the new, stock rebuilt engine and the numbers were impressive. Watch here

Worlds Largest Classic Car Show in the World! “The Power Big Meet”

Power-Big-Meet-Västerås-From-Above power big meet power big meet2

Touted as the largest classic car show in the world it is now entering its 37th year and for the last thirty years it has been hosted by the community of Västerås/Sweden. What is even more amazing is that this show is an American Car show! Maybe we here in the United States take our history as a car culture for granted. Held July 3 – 5, 2014, this show in Västerås is reported to attract over 20,000 vehicles from the fully restored to street rods and customs. Cruisers, Corvettes, Mustangs and Camaros abound in the air strip where the meet is held. It is said that the event maintains a carnival atmosphere and the venue accommodates the huge crowds without too much overcrowding. Last years event was attended by people from over 40 different countries. While most European countries were well represented as well as the United States, Canada, Mexico and Russia were also represented. Even groups from Israel, Turkey and Morocco were in Sweden to enjoy this event.
So… anyone following us here in the states, if you would like to enjoy the largest American Car show in the world, you still have enough time to book the flight. For our followers overseas, I hope you are all able to attend, we look forward to any updates and photos that anyone going may share with us.
Meanwhile, enjoy some pics from previous year shows and check out all the details here. http://bigmeet.com.s161614.gridserver.com/eng/

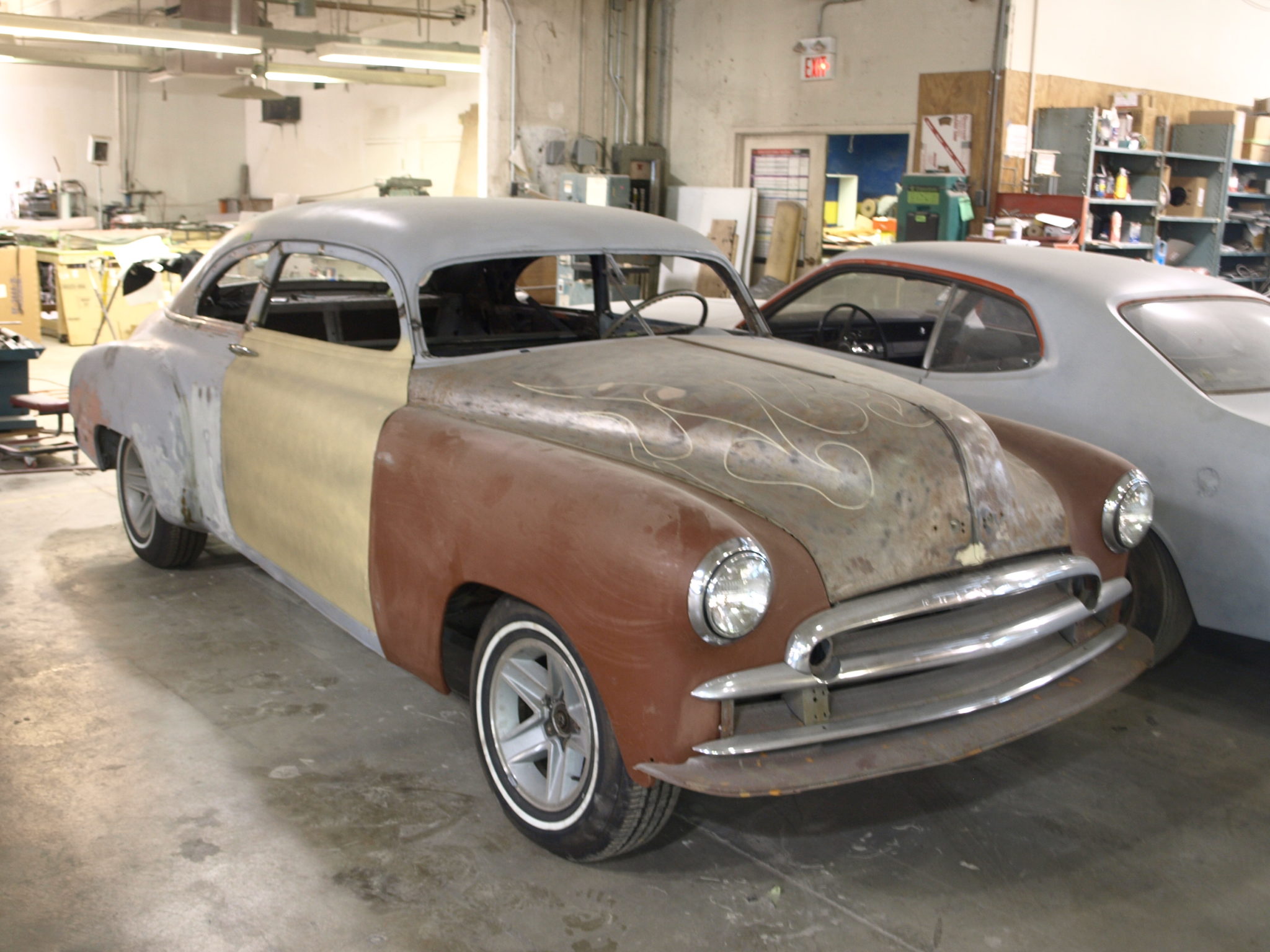

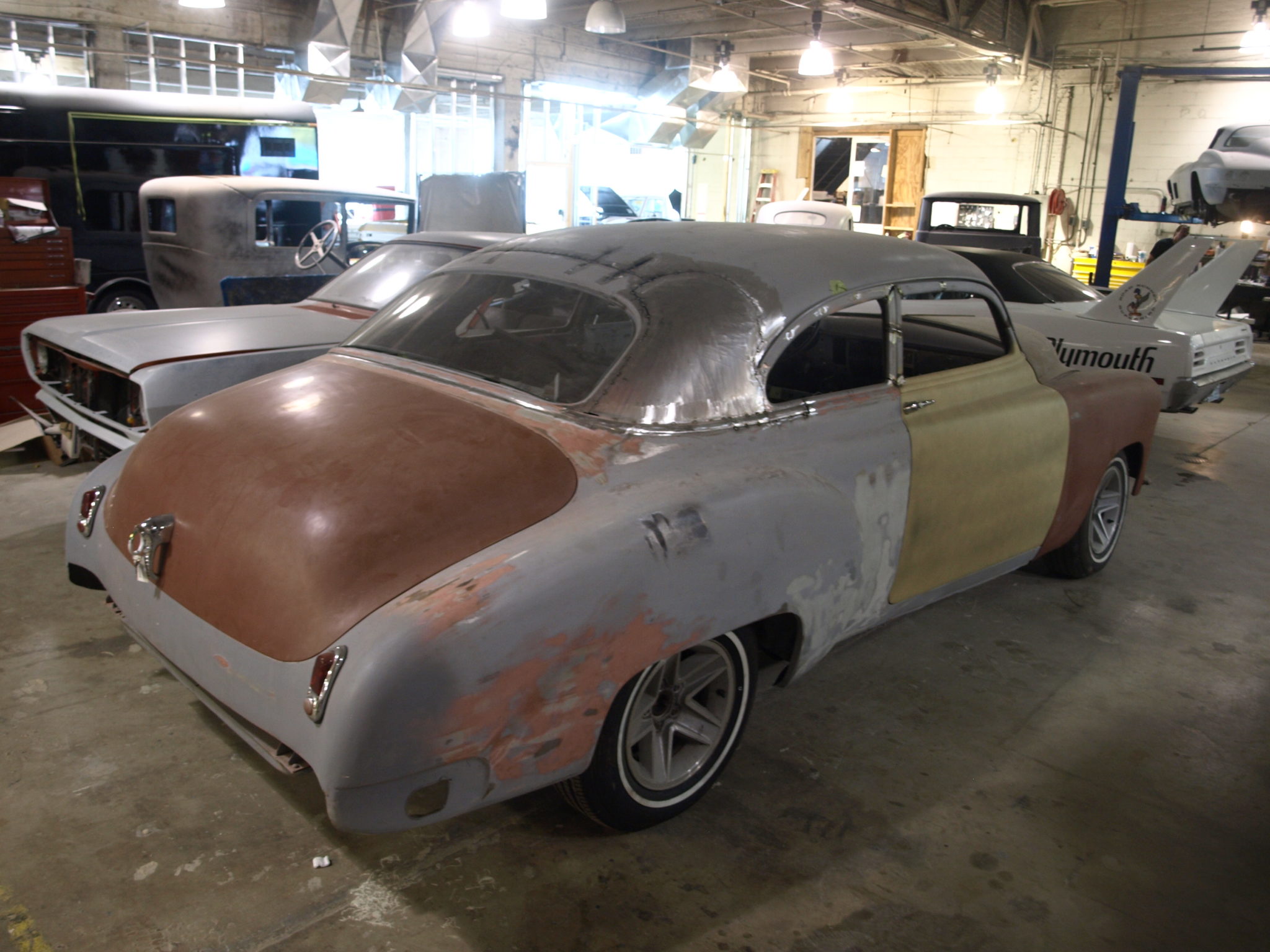

Evolution of a Restoration pt.4

Evolution of a Restoration Pt.4

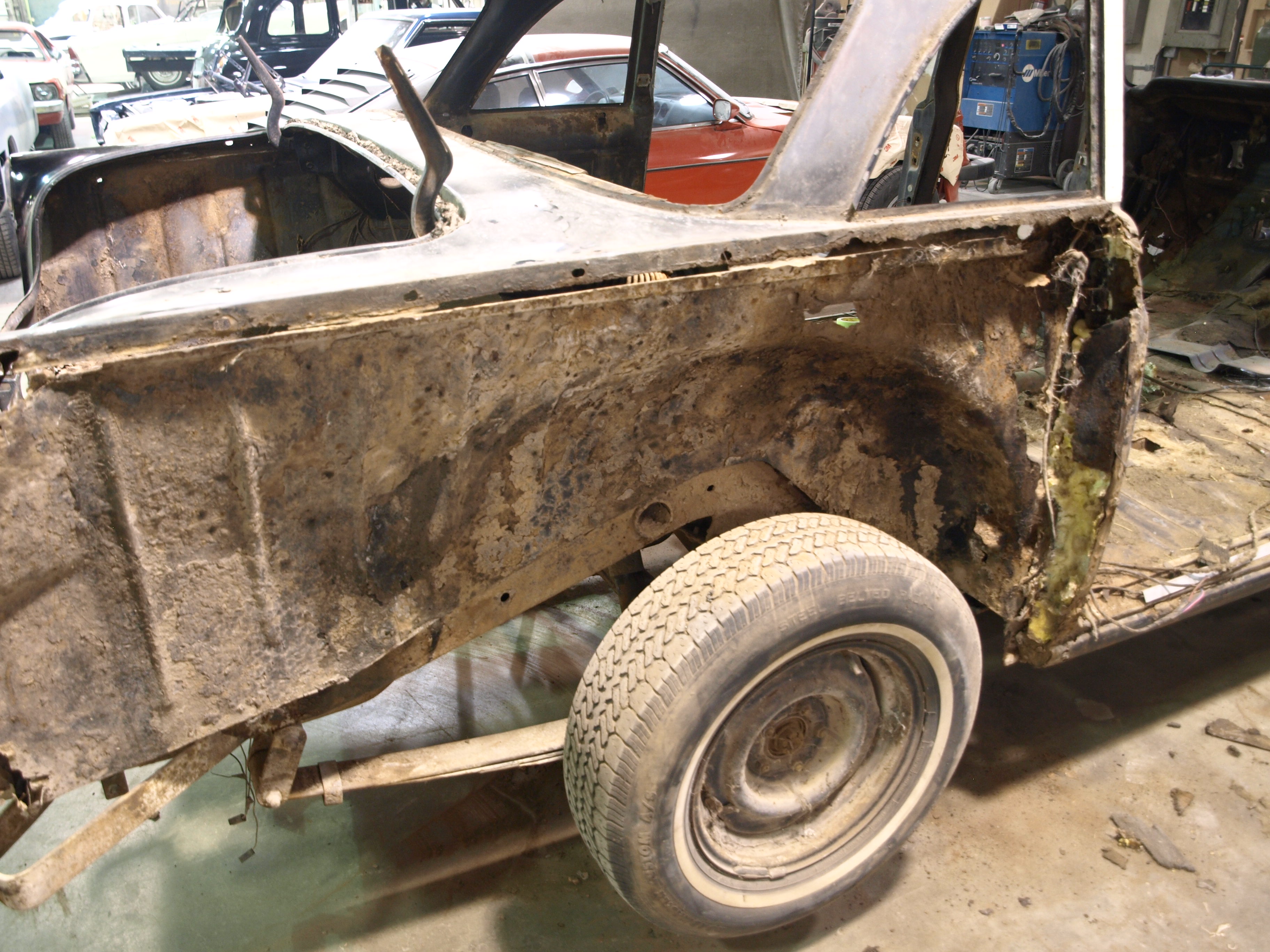

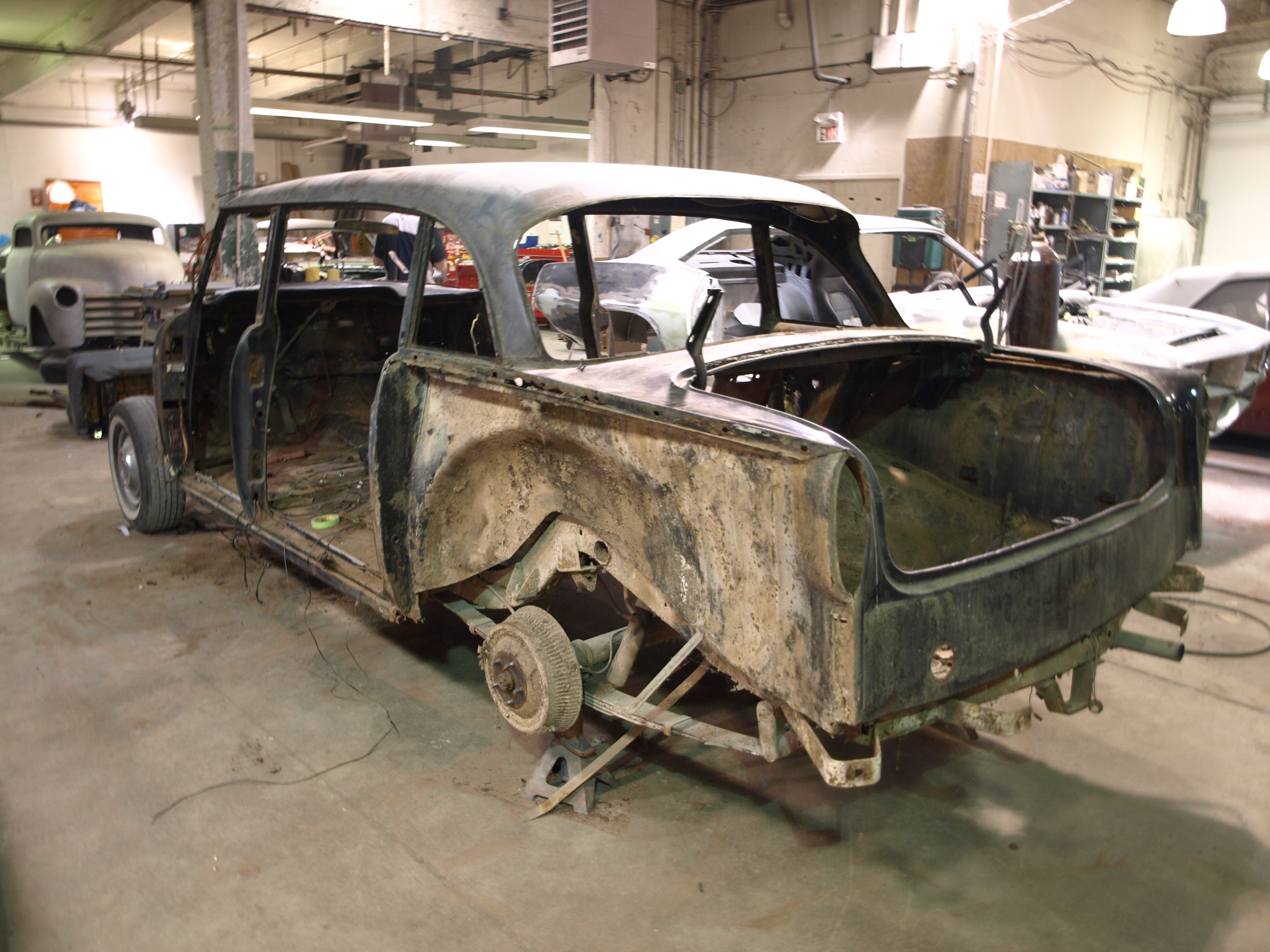

From this!

OLYMPUS DIGITAL CAMERA

To this

OLYMPUS DIGITAL CAMERA

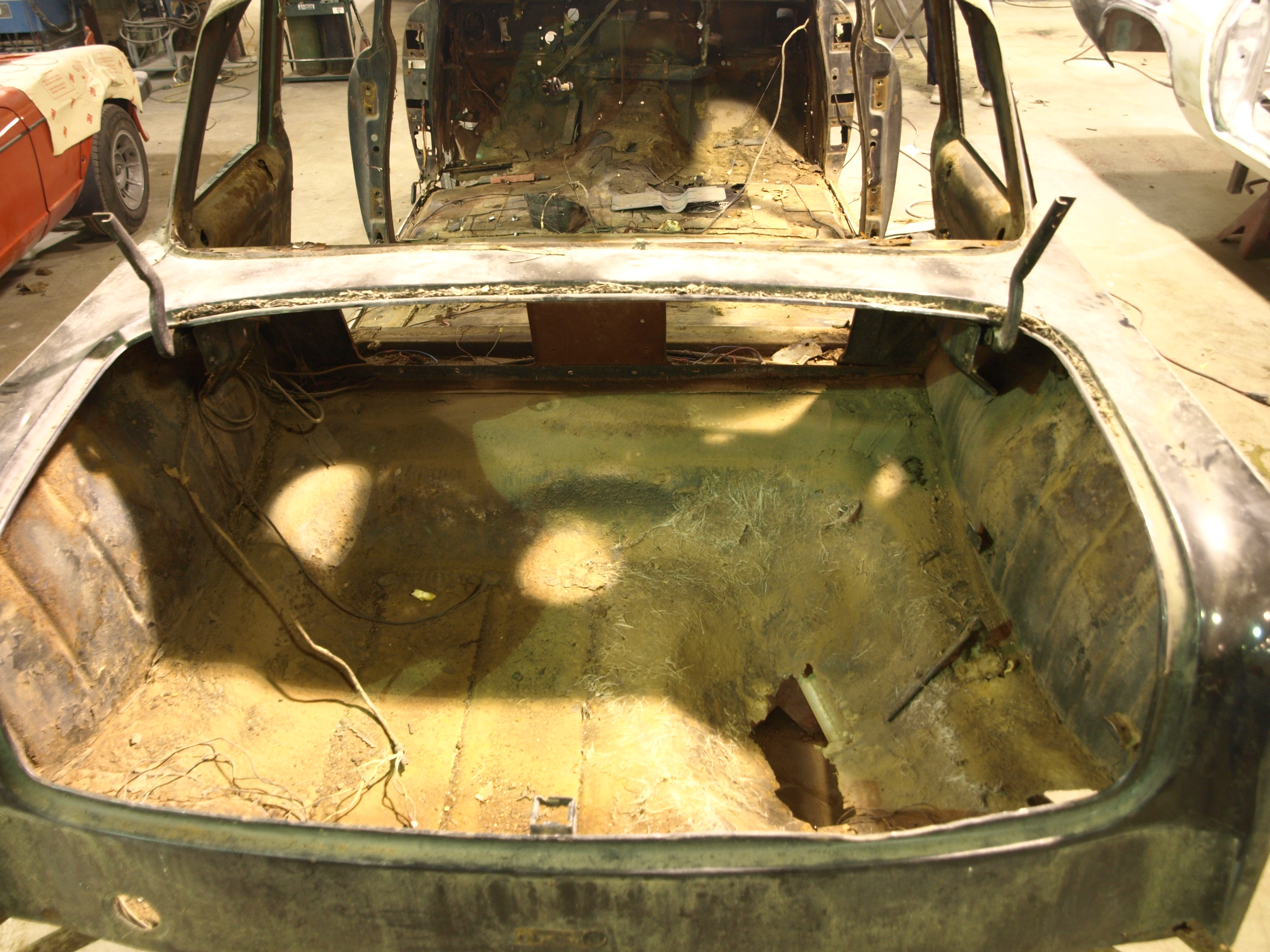

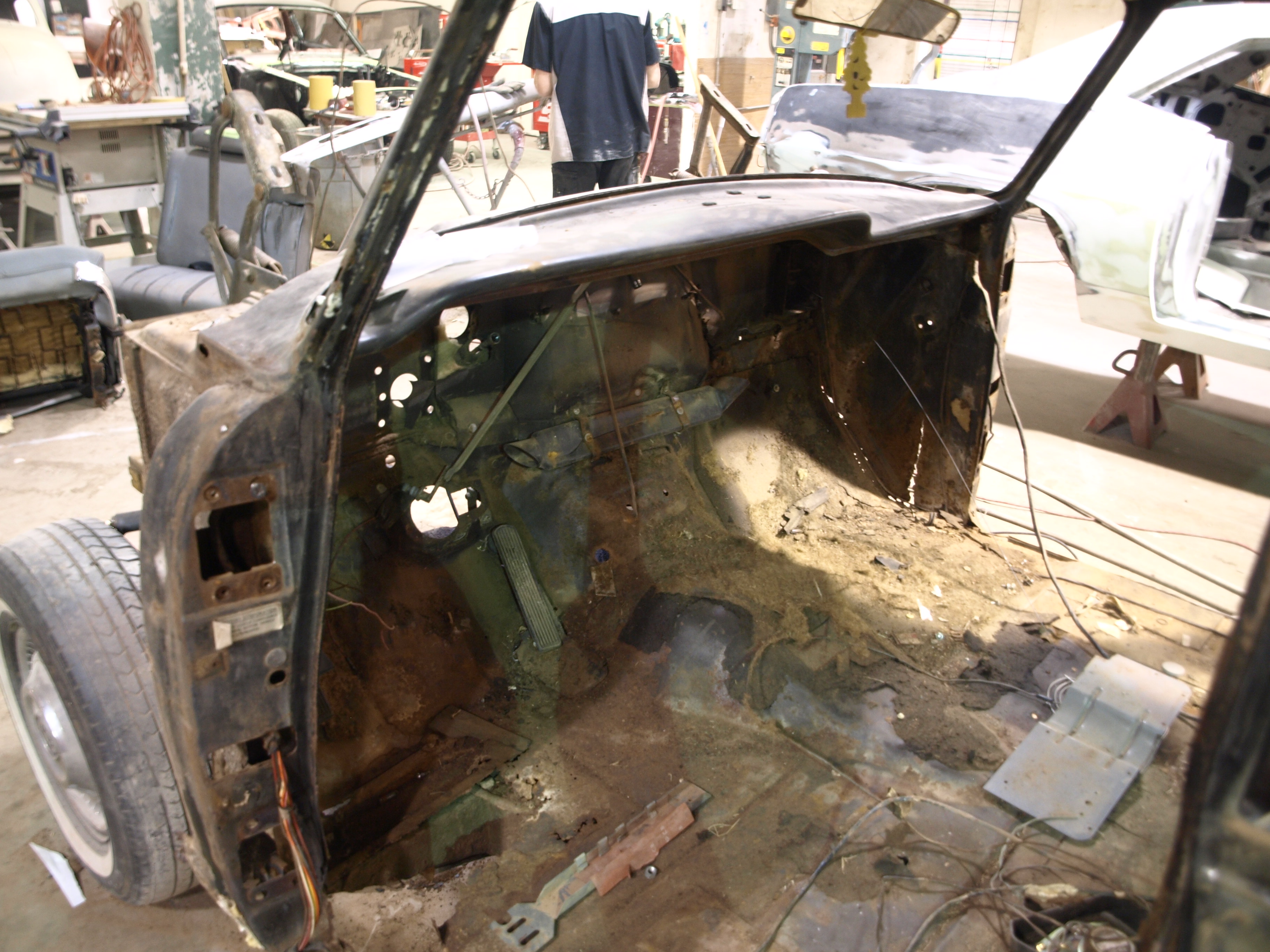

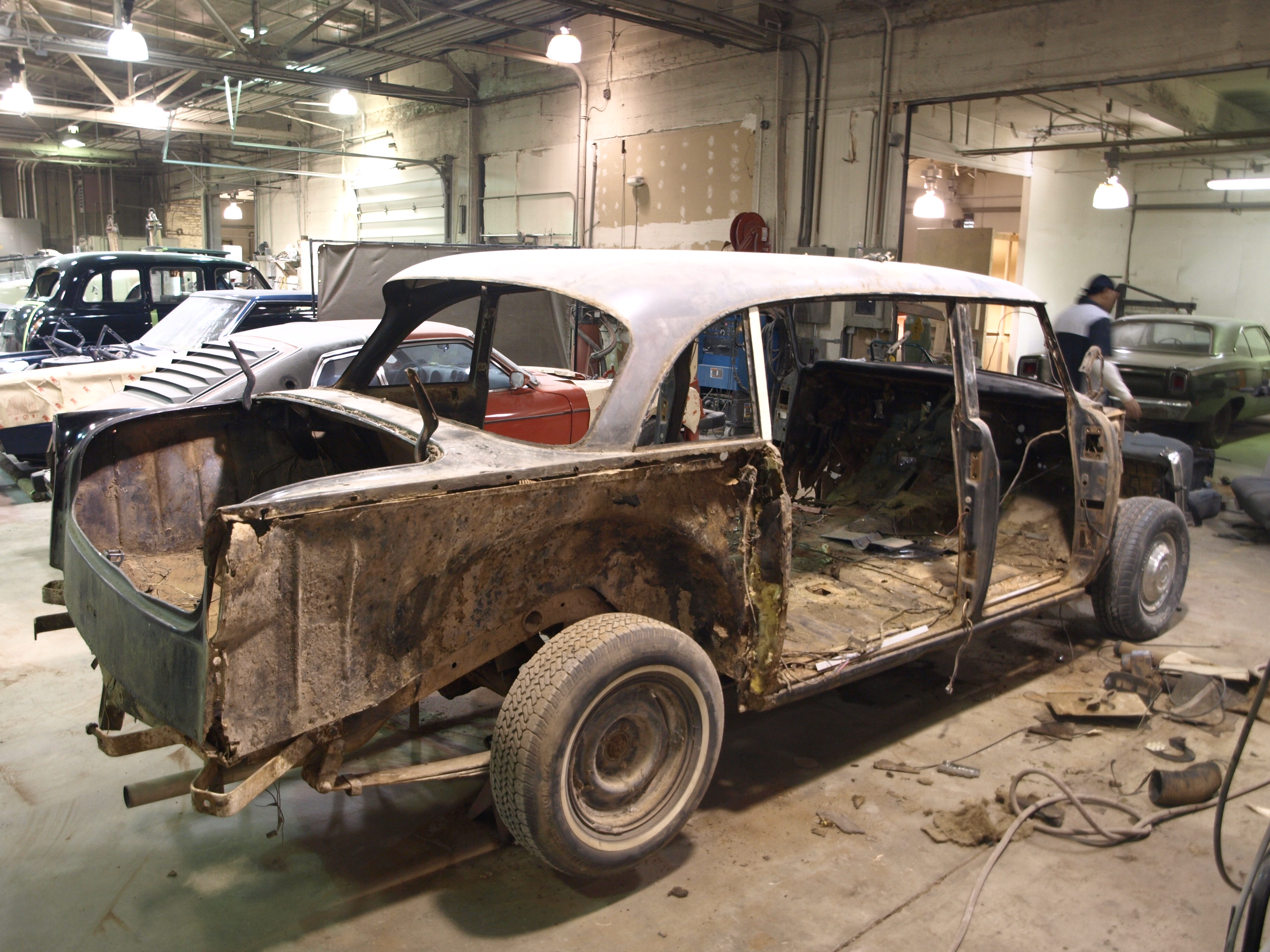

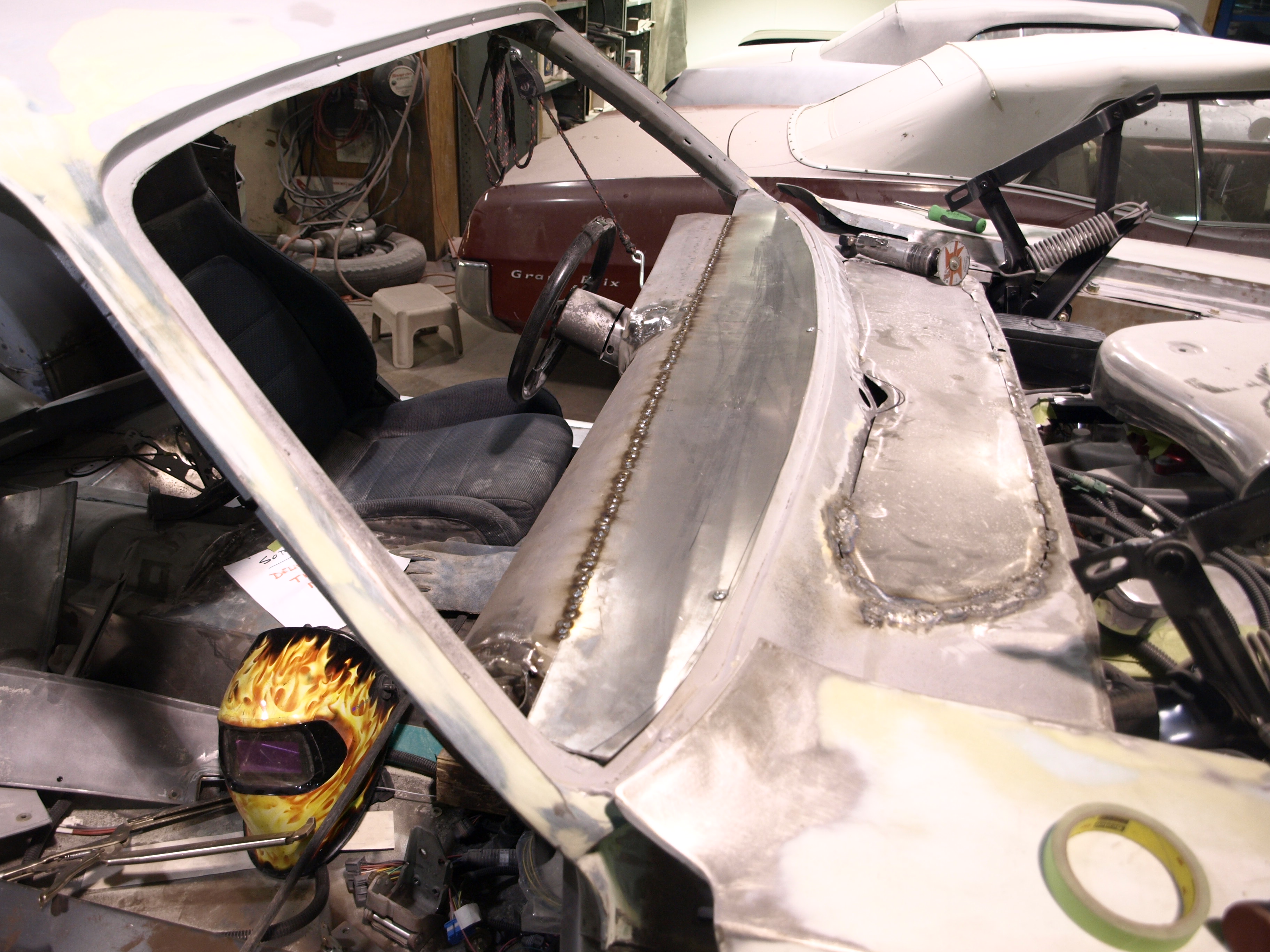

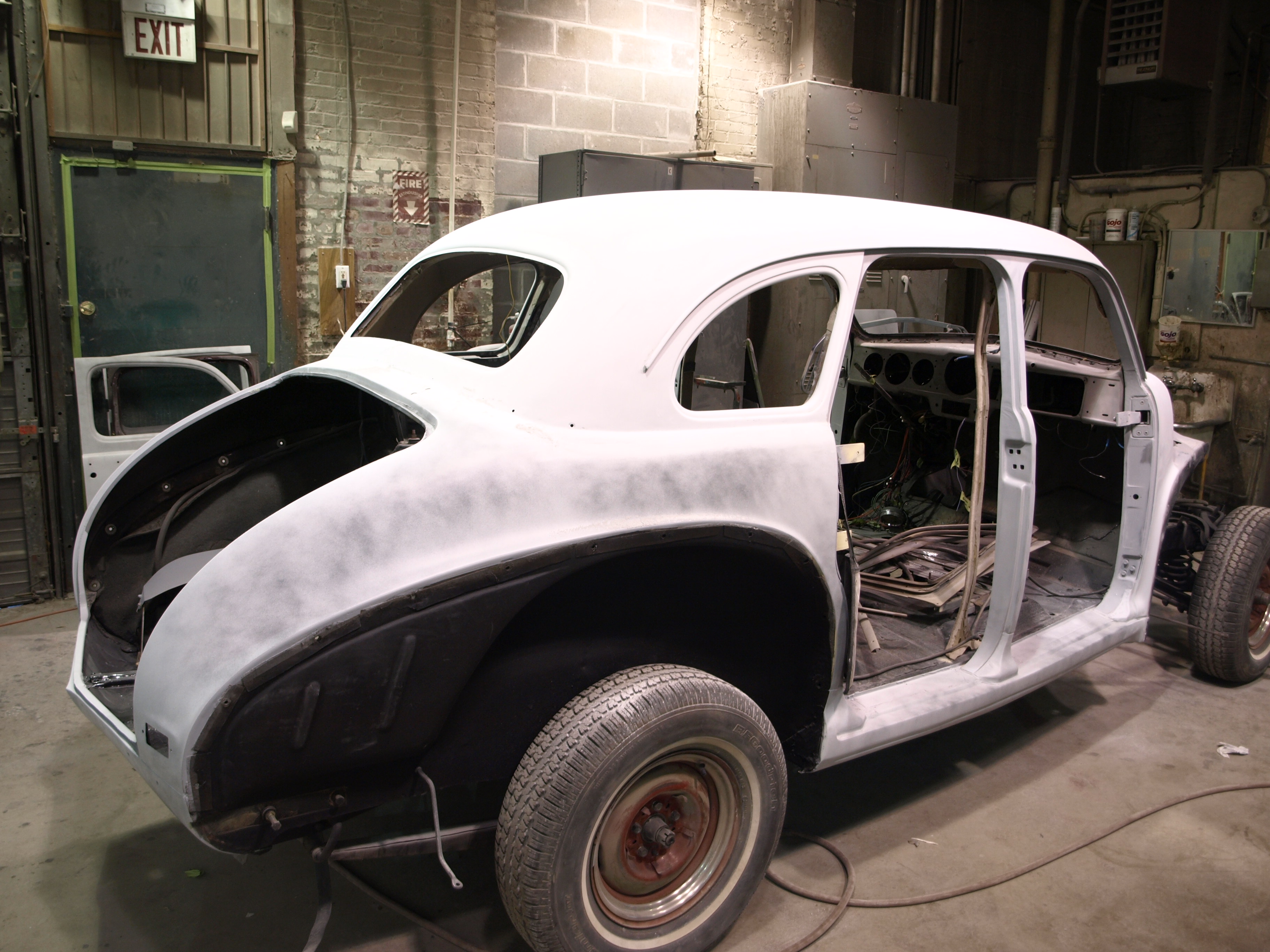

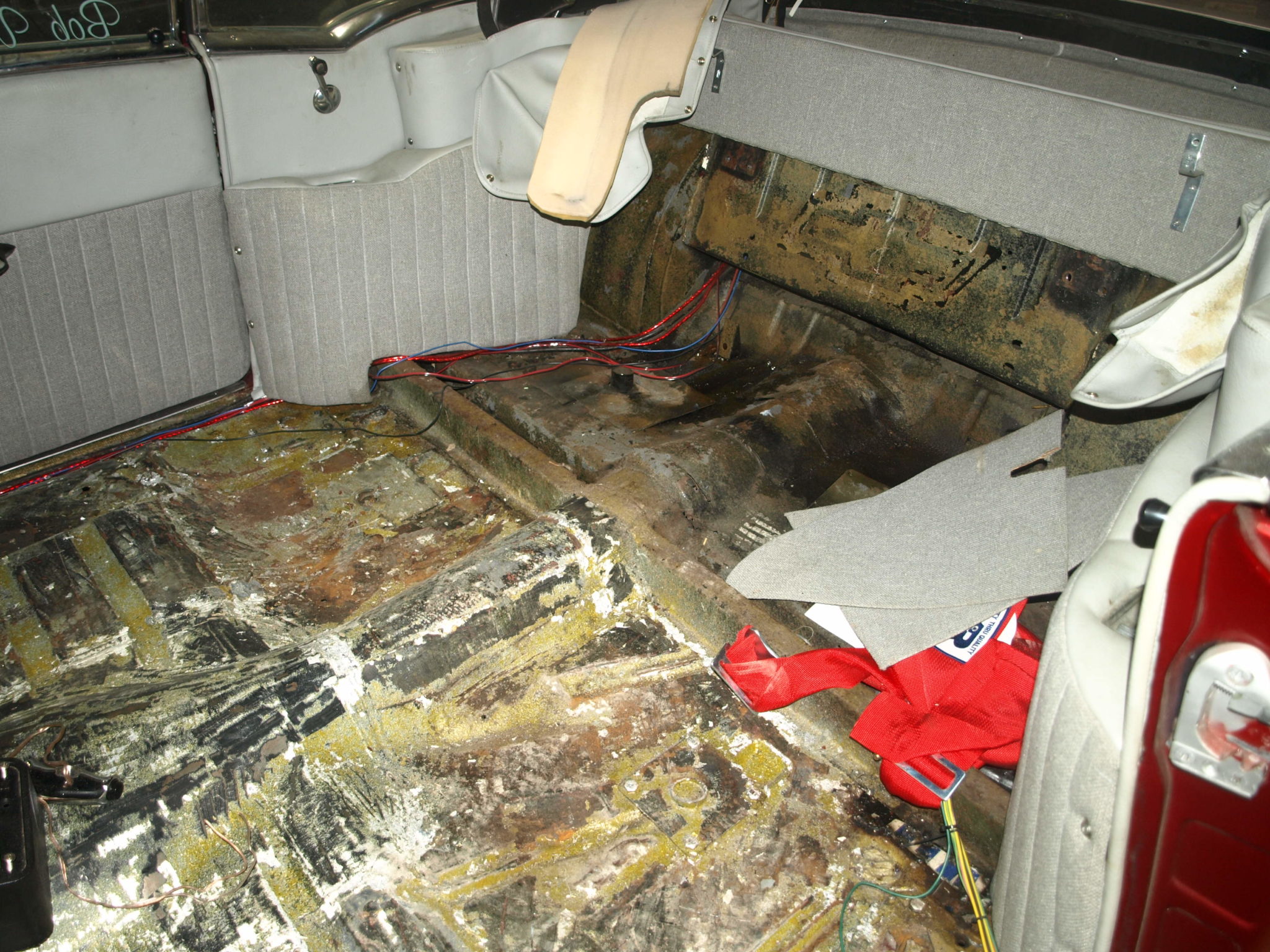

In the third part to this series we discussed some of the metal work involved with replacing floor pans and sheet metal. What comes next? We need to prep the bare metal, if you choose to use replacement panels I would recommend that they be cleaned entirely of the coating they were shipped with. What we recommend, and do, is coat the vehicle with an “etching” primer.

Etching Primer;
Self – etching primer is used to seal bare metals and used as a rust inhibitor. Made up of a base consisting of acid, often phosphoric, and zinc it is designed to impregnate the surface molecules of the metal. While this treatment does not reverse the effects of rust it does have the ability to neutralize it and prevent further deterioration.
After coating the metal surfaces of the floor and the quarters we will grind down the welds on the quarter panel. While we have all seen panels overlapped and held on by nothing more than tack welds you will be disappointed in a few years when those repairs come back to haunt you. There are times when you will have to overlap metal panels, that is how much of a car is designed but not for quarter panels and most sheet metal rust repair panels. Once you have inspected the panel to ensure there is no damage that will affect the installation set the replacement panel into place over the old metal and position it to where it should go for the best fit, make a few alignment marks. Using sheet metal vice-grips clamp the replacement quarter panel into place around the wheel well, over the original sheet metal. Using you alignment marks position and secure the panel. Don’t think that everything looks better two feet away, step back and look at the positioning of the panel, how the character lines match up, how the leading and trailing panels fore and aft of the wheel look, this is one of the last opportunities you will have to make adjustments and it has to be right. If the lower half of the quarters are rotted away, measure curb height to make sure you have it placed correctly. There are many resources on the internet that can provide you that information on most cars, most importantly make sure it is right. Once you feel it is aligned correctly outline the panel with a scribe or a fine tipped marker. Step back and look it over again before removing the replacement panel, if all looks good remove the panel. You should now have a perfect outline of your replacement panel on your old sheet metal, cut it out. There are a few very effective ways to cut this out. A high speed cutting tool is simple to use but takes time and can become hard to control, electric or air powered shears work very well and then there is plasma.

Snap on high speed cutting tool Air shearsplasma cutter

Plasma Cutter
First, doing any kind of work with a Plasma cutter requires proper eye protection. As with most repairs eye protection is required but when using Plasma cutters, TIG welders, MIG welders or when doing any type of welding you must protect your eye with the proper shields and goggles as necessary.
Plasma Cutters use an inert gas, (a gas that does not experience chemical reactions, such as oxidation, when used in certain applications) like Argon, as a shielding gas which is rapidly fed through the nozzle where an electric arc is created. This arc heats the gas and the metal to a sufficient temperature where the gas essentially passes through the metal and creates very clean precise cuts.

OLYMPUS DIGITAL CAMERAOLYMPUS DIGITAL CAMERAOLYMPUS DIGITAL CAMERA

After the panel has been cut out align your replacement panel within the opening, we recommend, and use, a TIG welder to weld the panel onto the car. Start off with a few small tack welds to hold the panel in place and then join the body with the new panel by completing a full weld around the circumference of the panel.



OLYMPUS DIGITAL CAMERA

After the panel has been welded completely, with clean welds that have very few pin holes, apply a coat of etching primer. After the etching primer is dry grind the welds down flat, when done your quarter should look like one piece of metal again.



OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA
There are different types of panels, patch panels and replacement panels are not the same. There are both types of quarter panels available, a replacement panel will require removal of more of the stock sheet metal and require more precise alignment as replacement of these panels will affect door alignment. Be sure you know what you are doing before welding these panels on so that you don’t find yourself in a bind later when doing panel alignment.

There will still be filler required, not to fill any waves or dents but a glaze coating of filler will be use to fill any imperfections in the weld and make the merge with the body complete. Very aggressive sand paper of a 36 or 40 grit will be used during the initial sanding and the final sand will be done with a 80 or 100 grit paper. Depending on the shape of the panel you may have to hand sand portions where you filled but any areas that would allow you to use a block to sand, do. Block sanding provides a straighter repair than your flexible, soft hand. Continue to sand until the surface is straight and smooth with no distinct edge to the filler. When satisfied that your repair is straight and will be invisible to the naked eye once painted apply a sanding primer.

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA

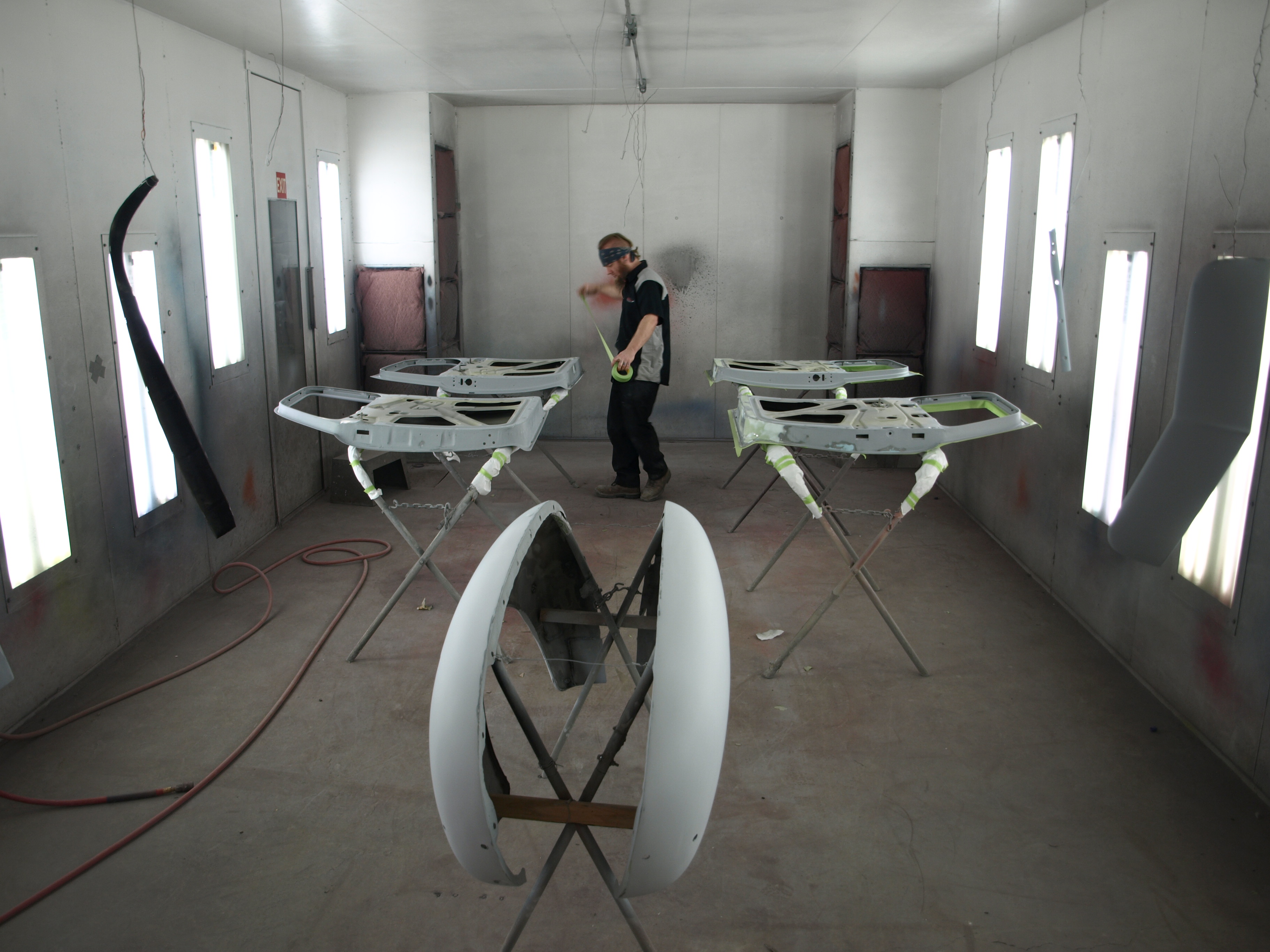

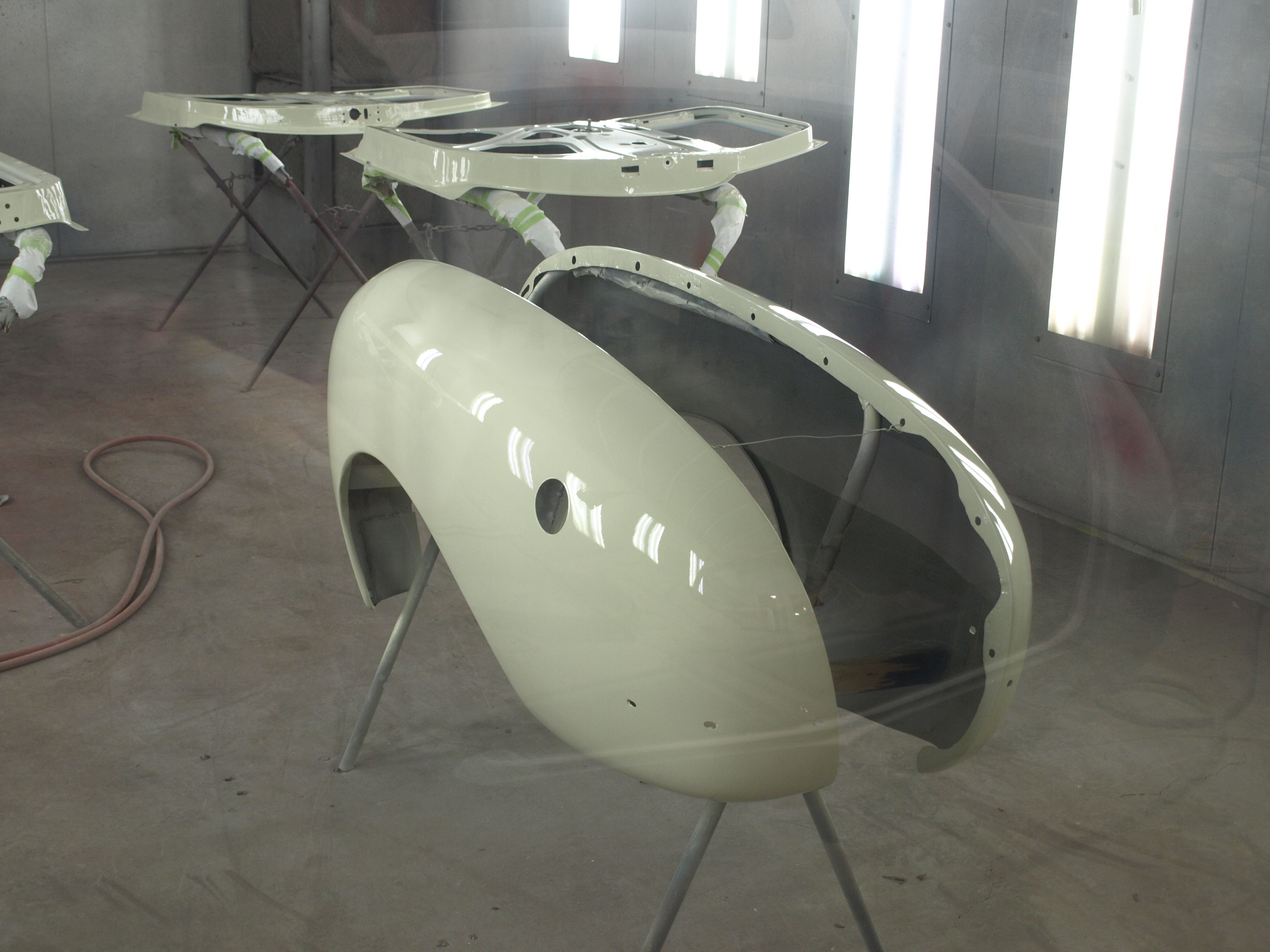

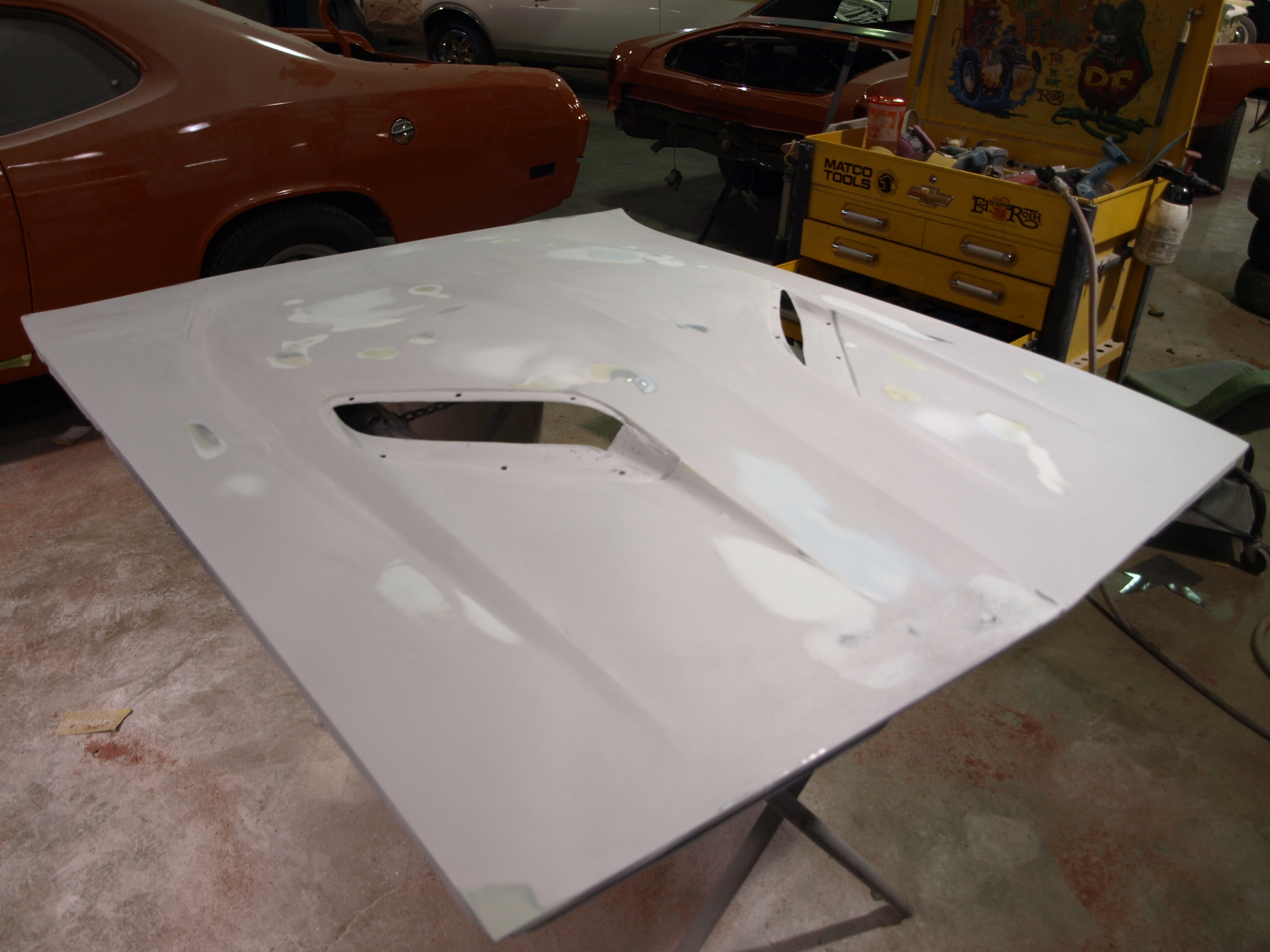

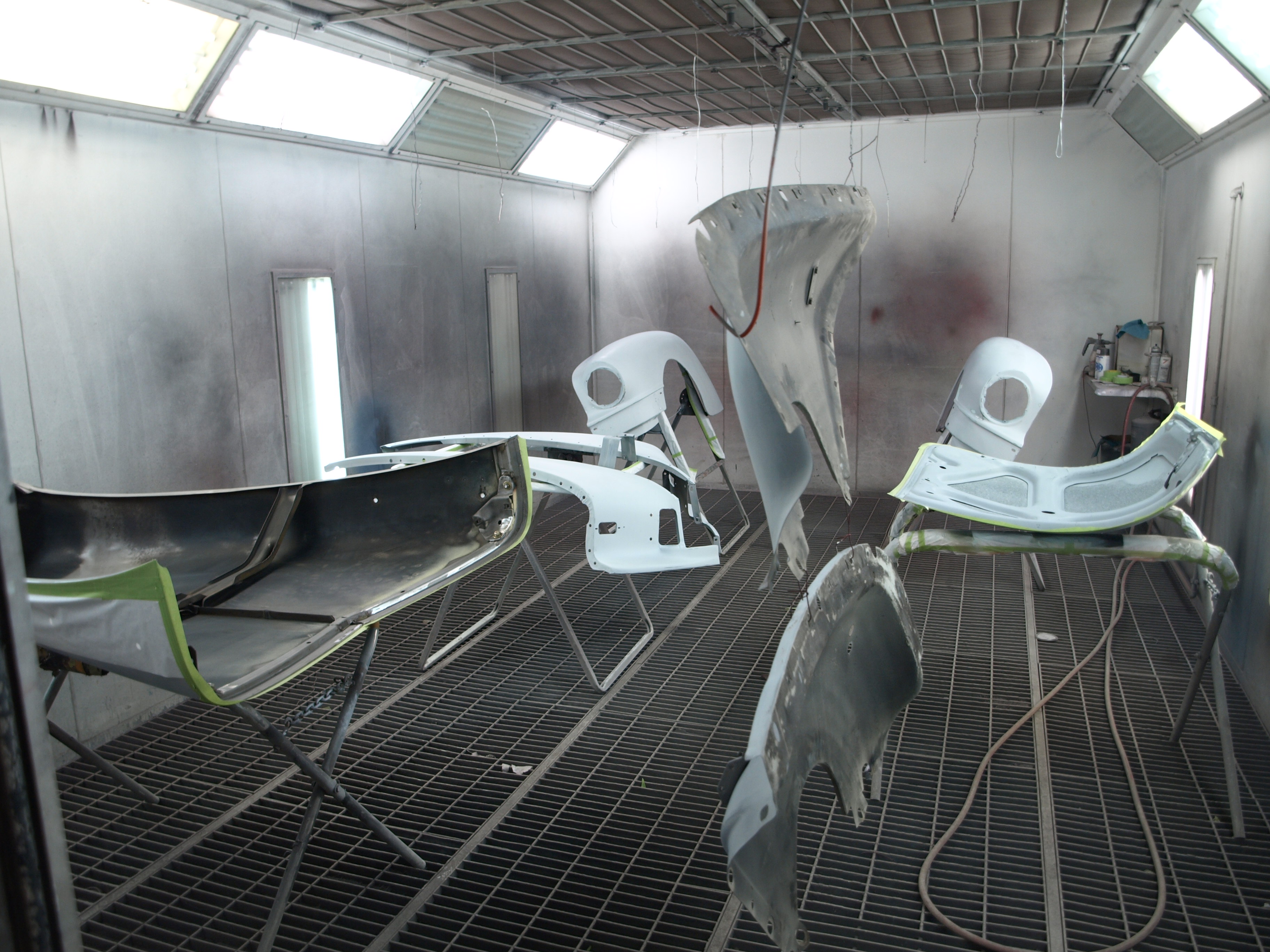

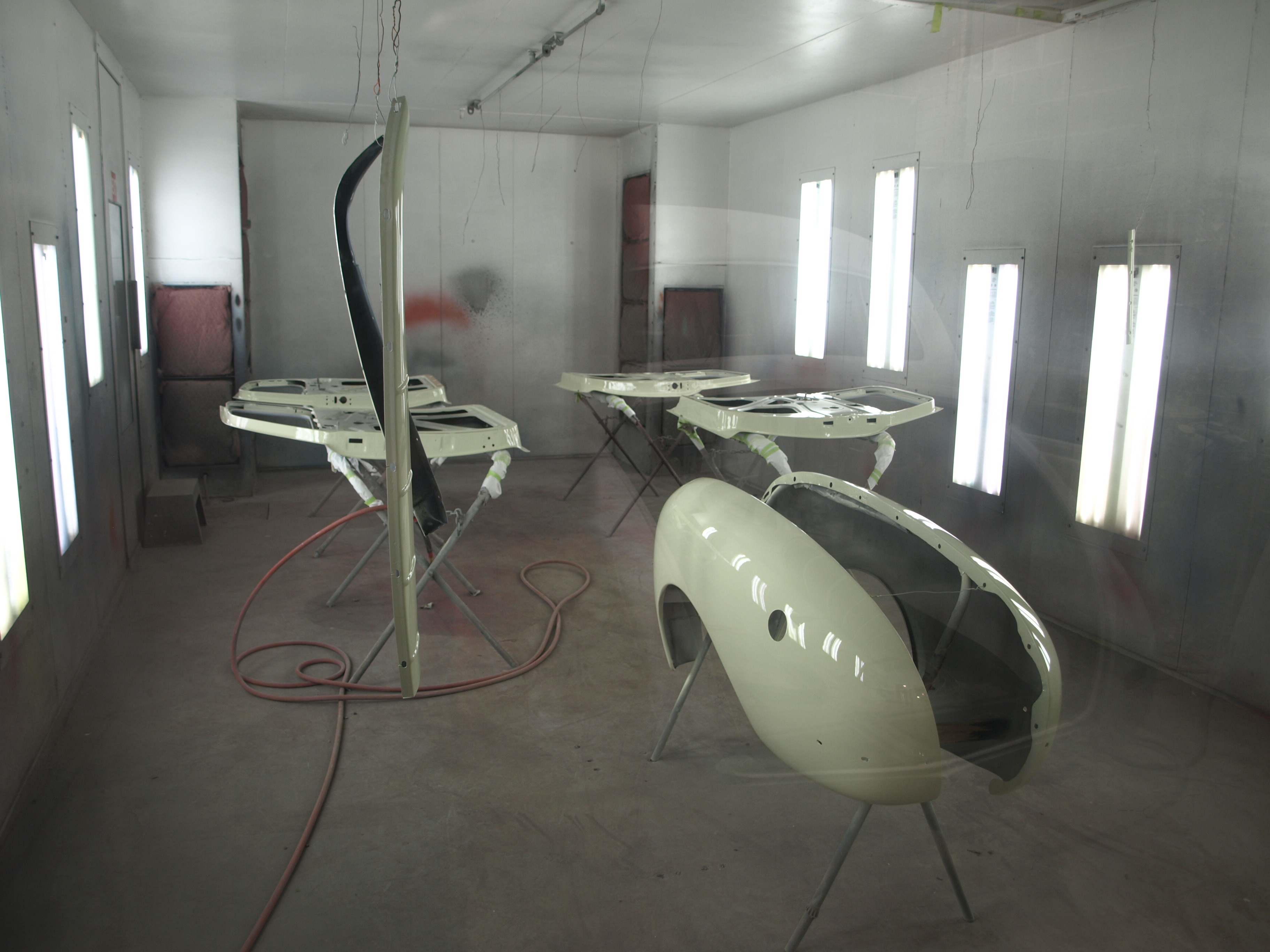

As we continue through the project each panel is going to be coated with etching primer after all the paint, or coatings, are removed and before any additional metal work or repair is completed.

Next time we will discuss sanding primers, block sanding, sealer and paint.







Precision Restoration is looking for experienced craftsmen!



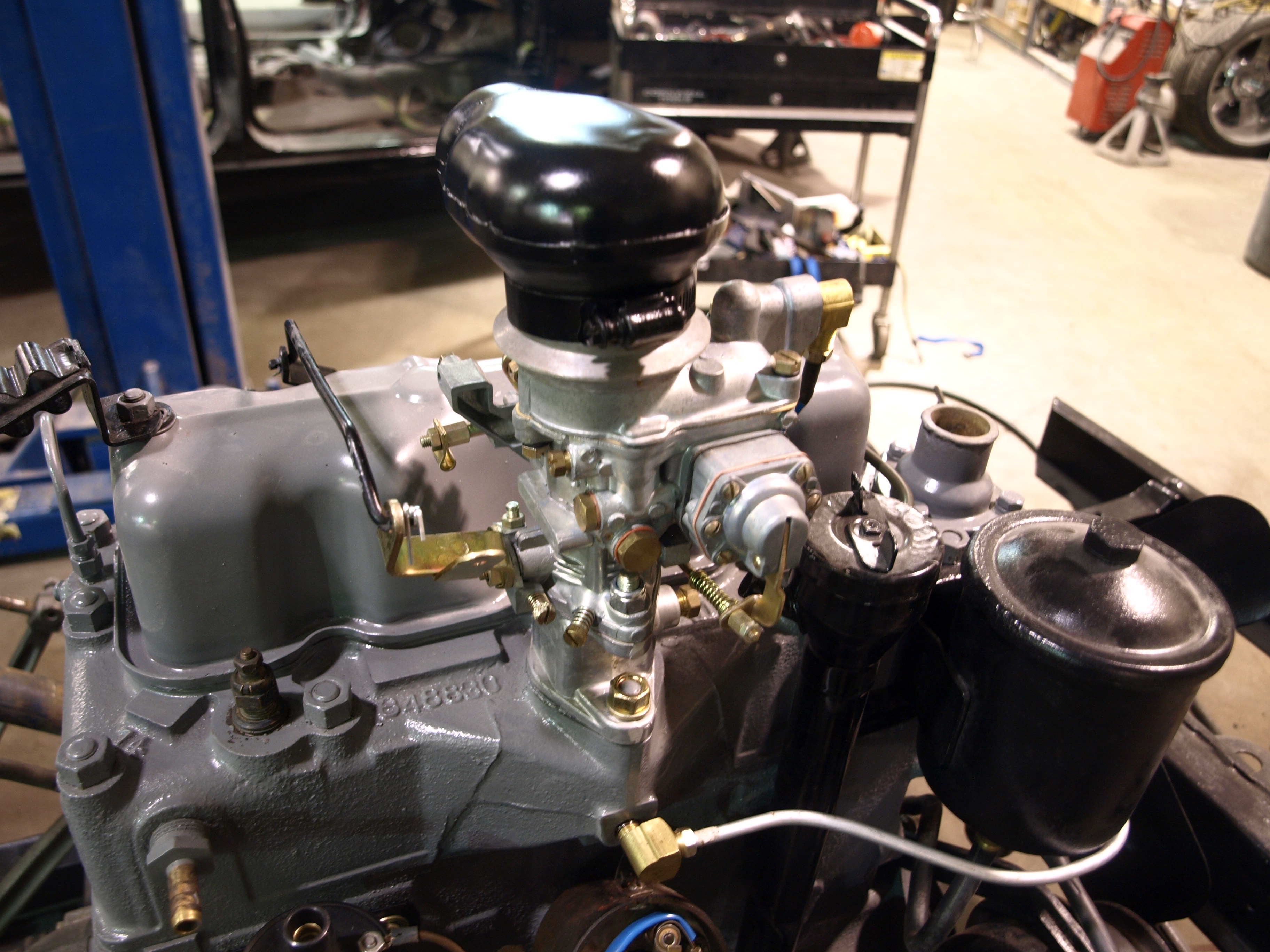

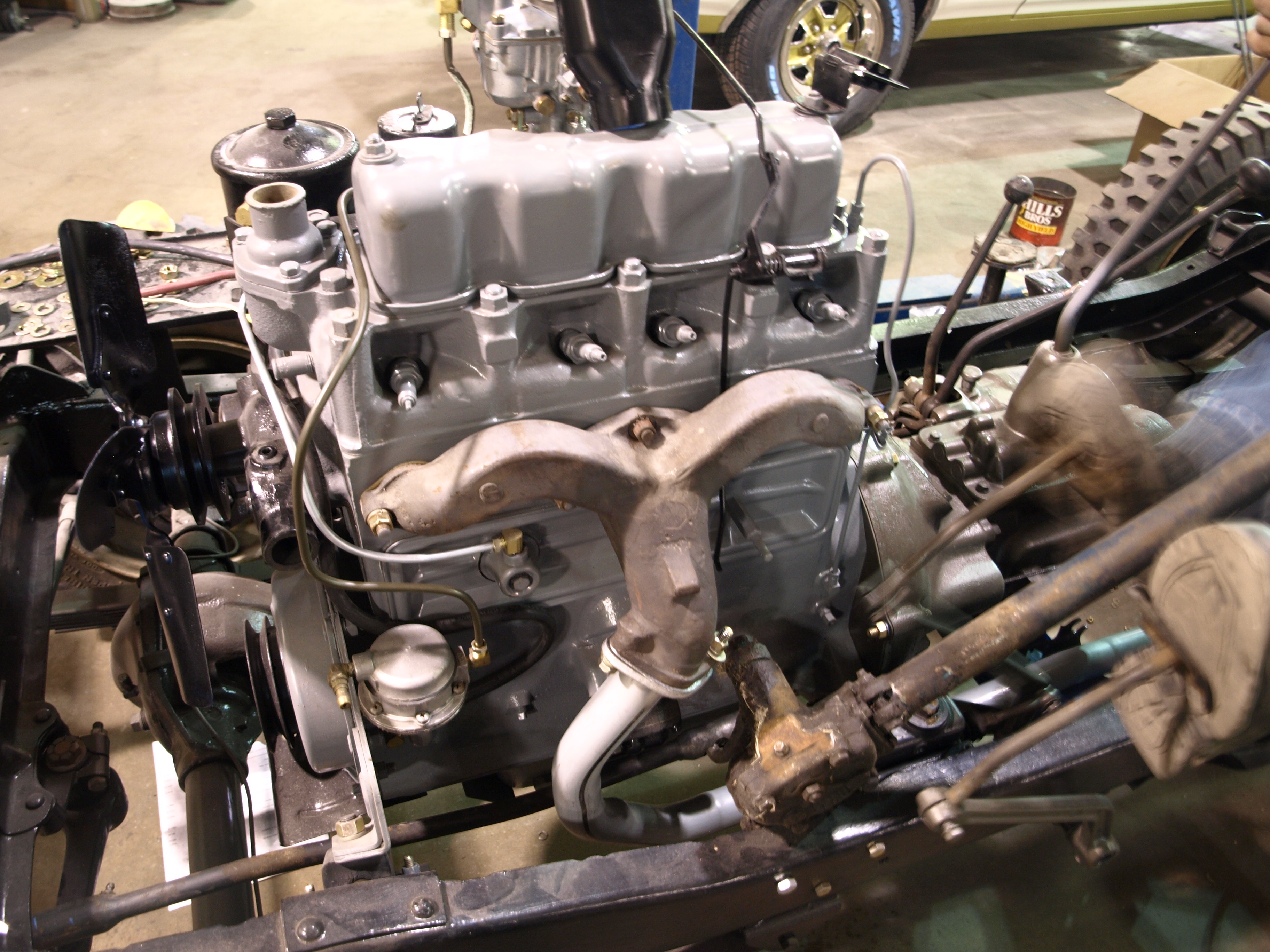

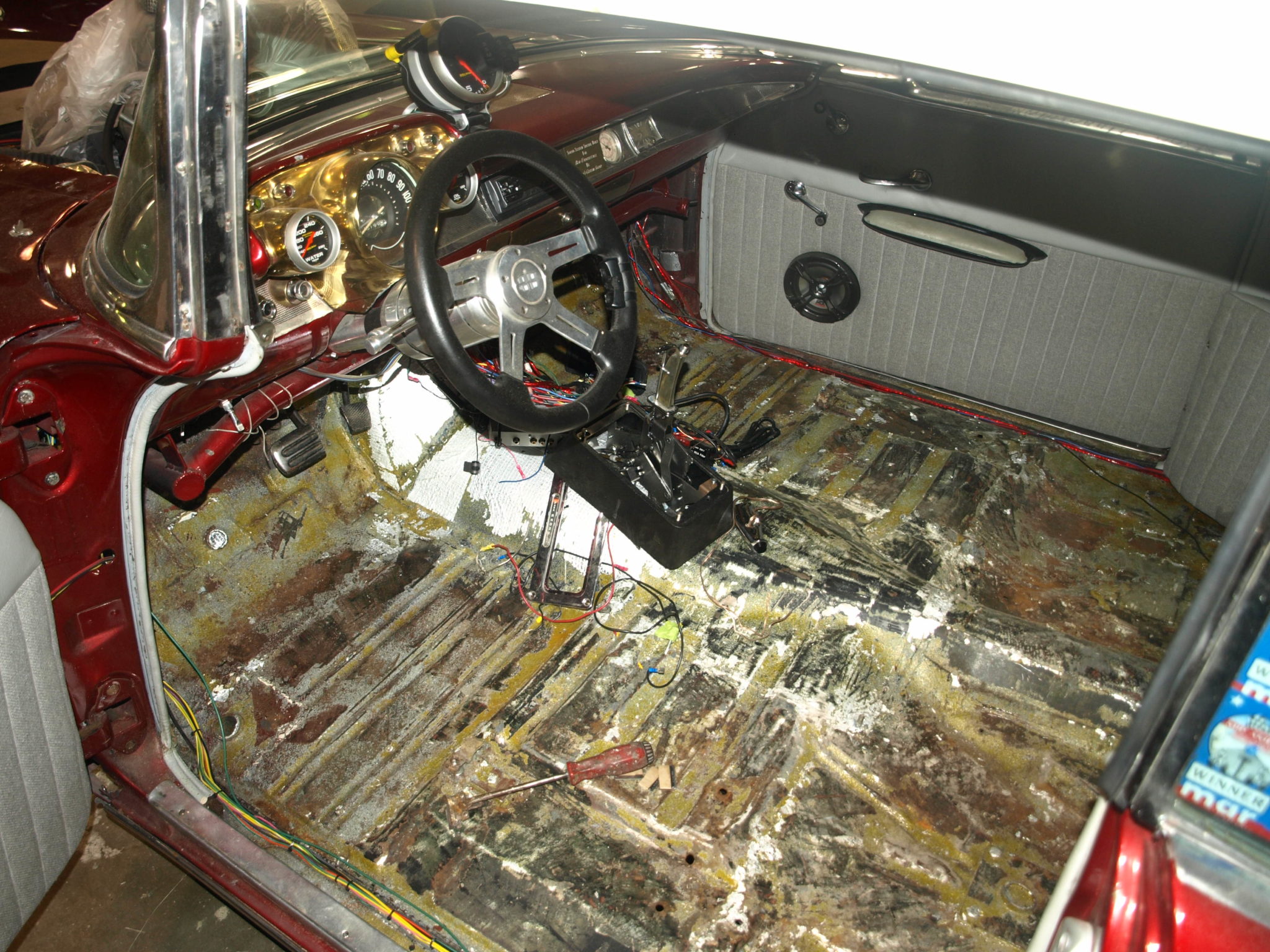

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA

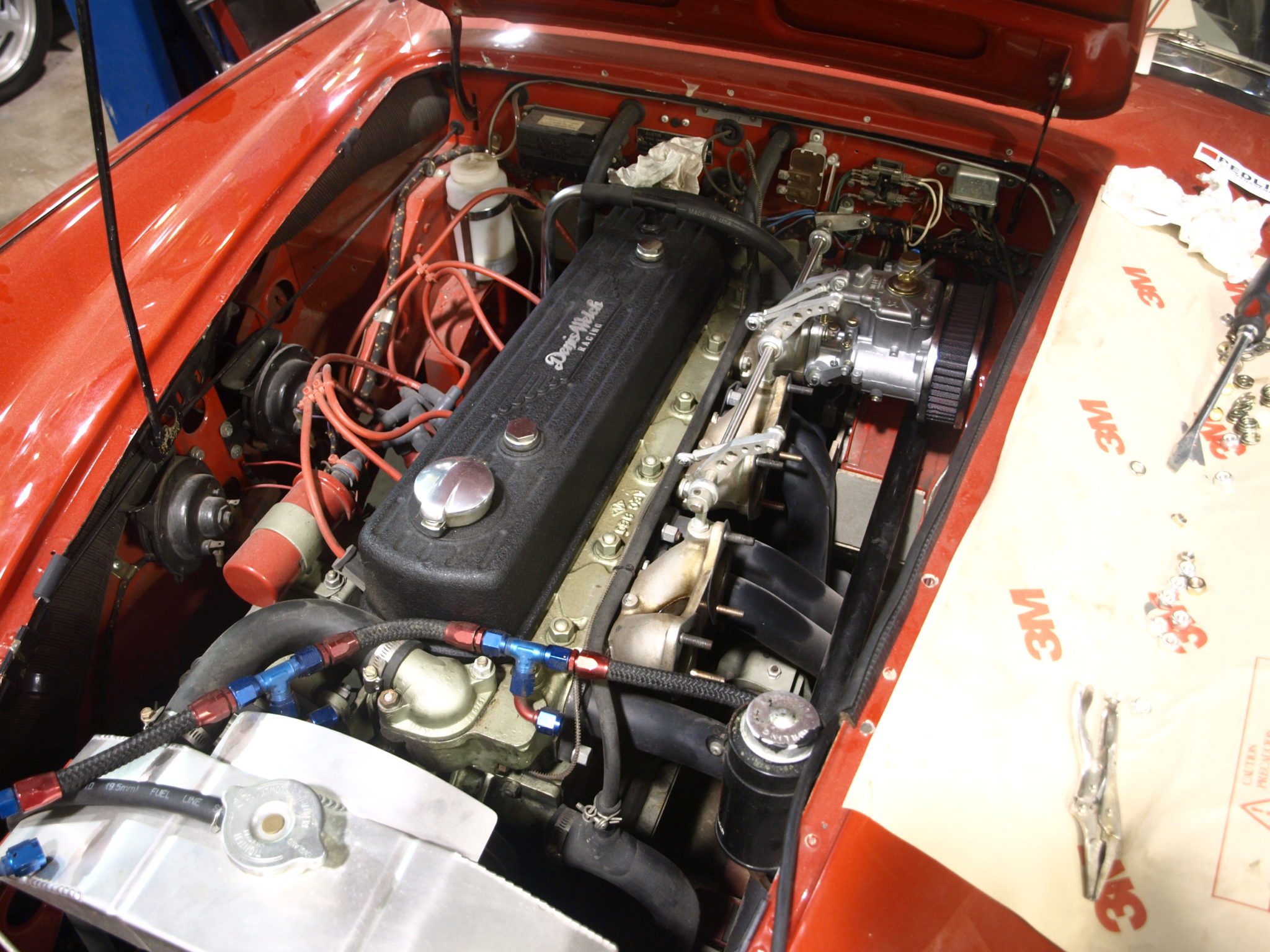

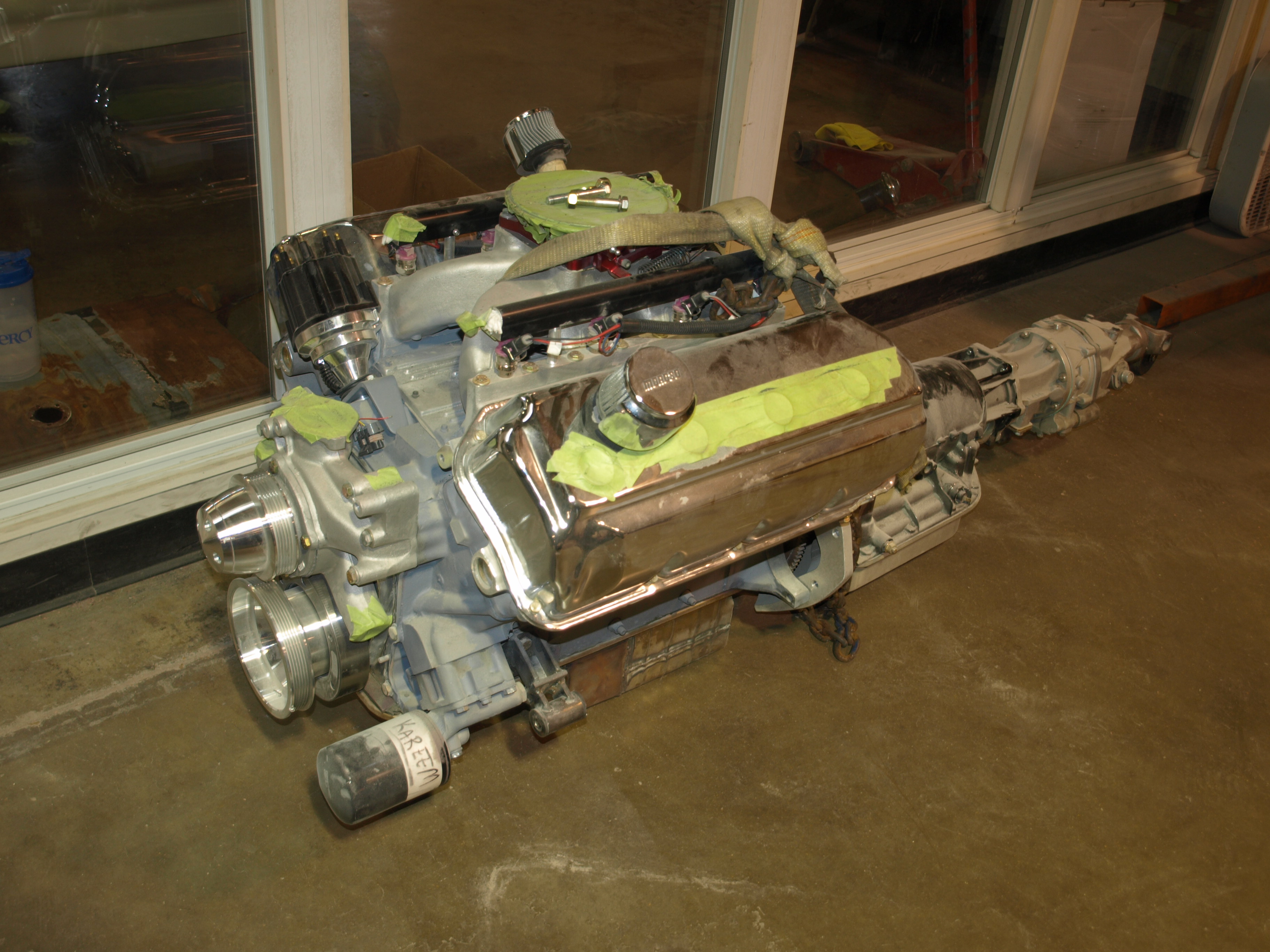

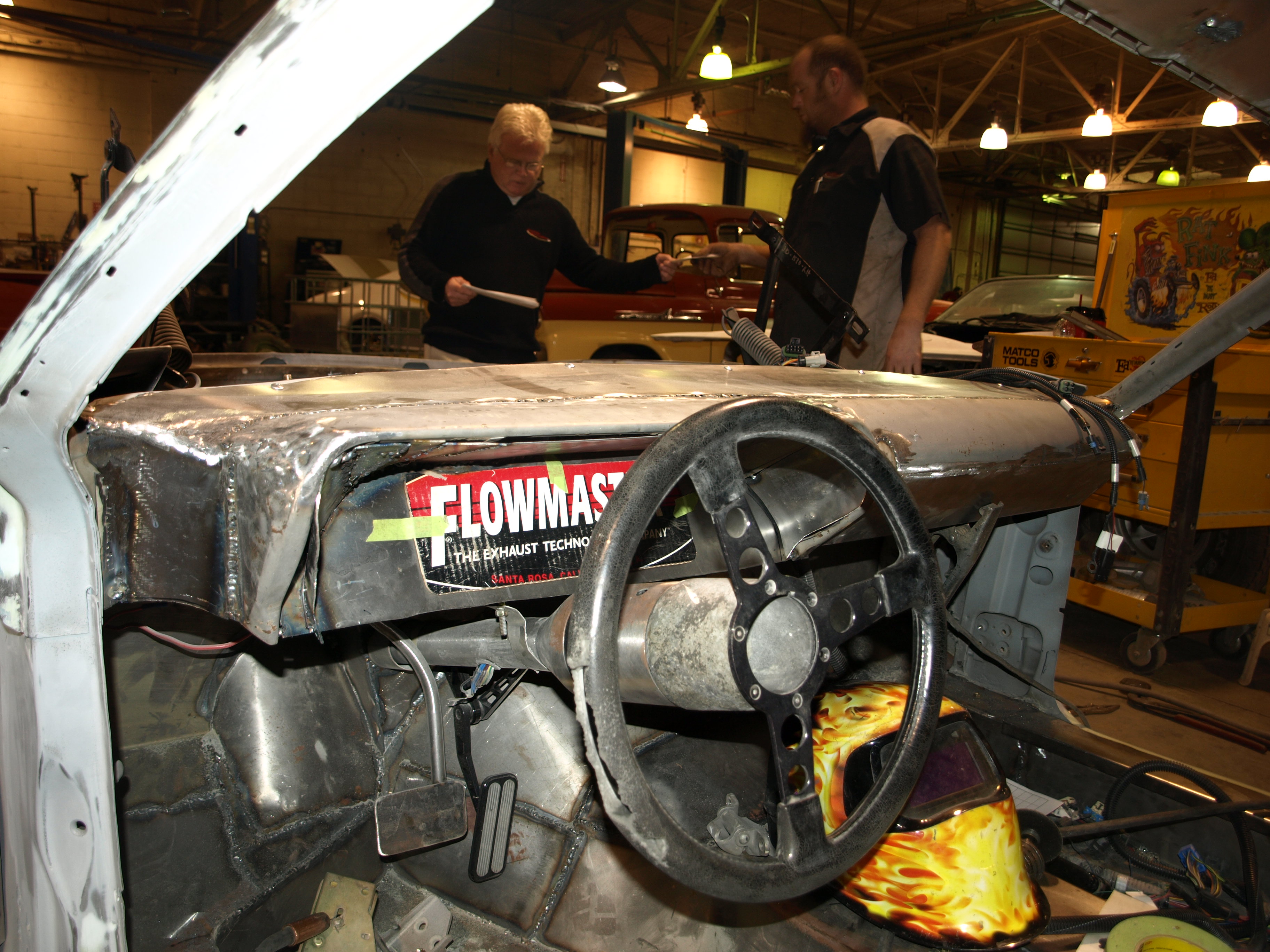

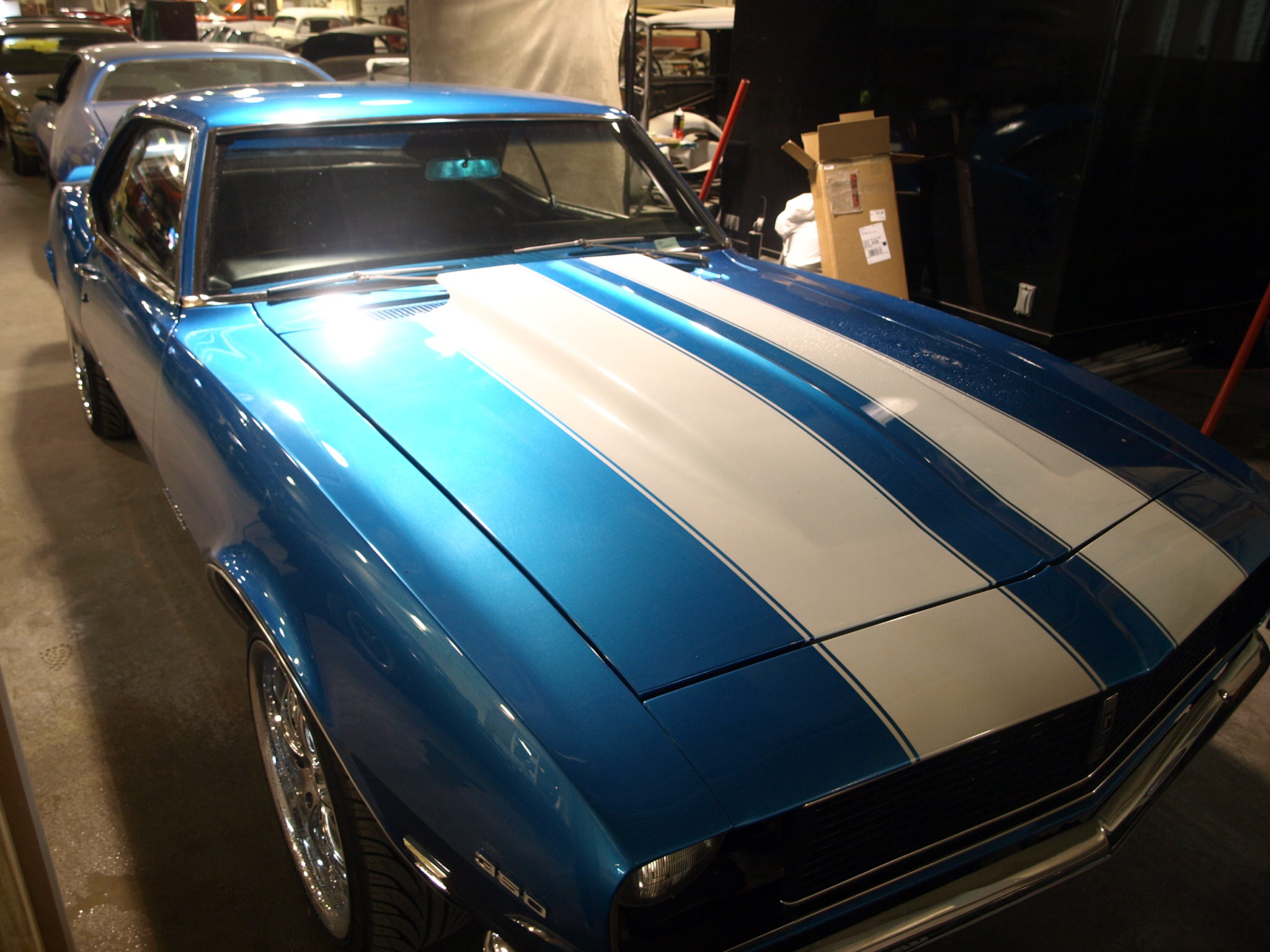

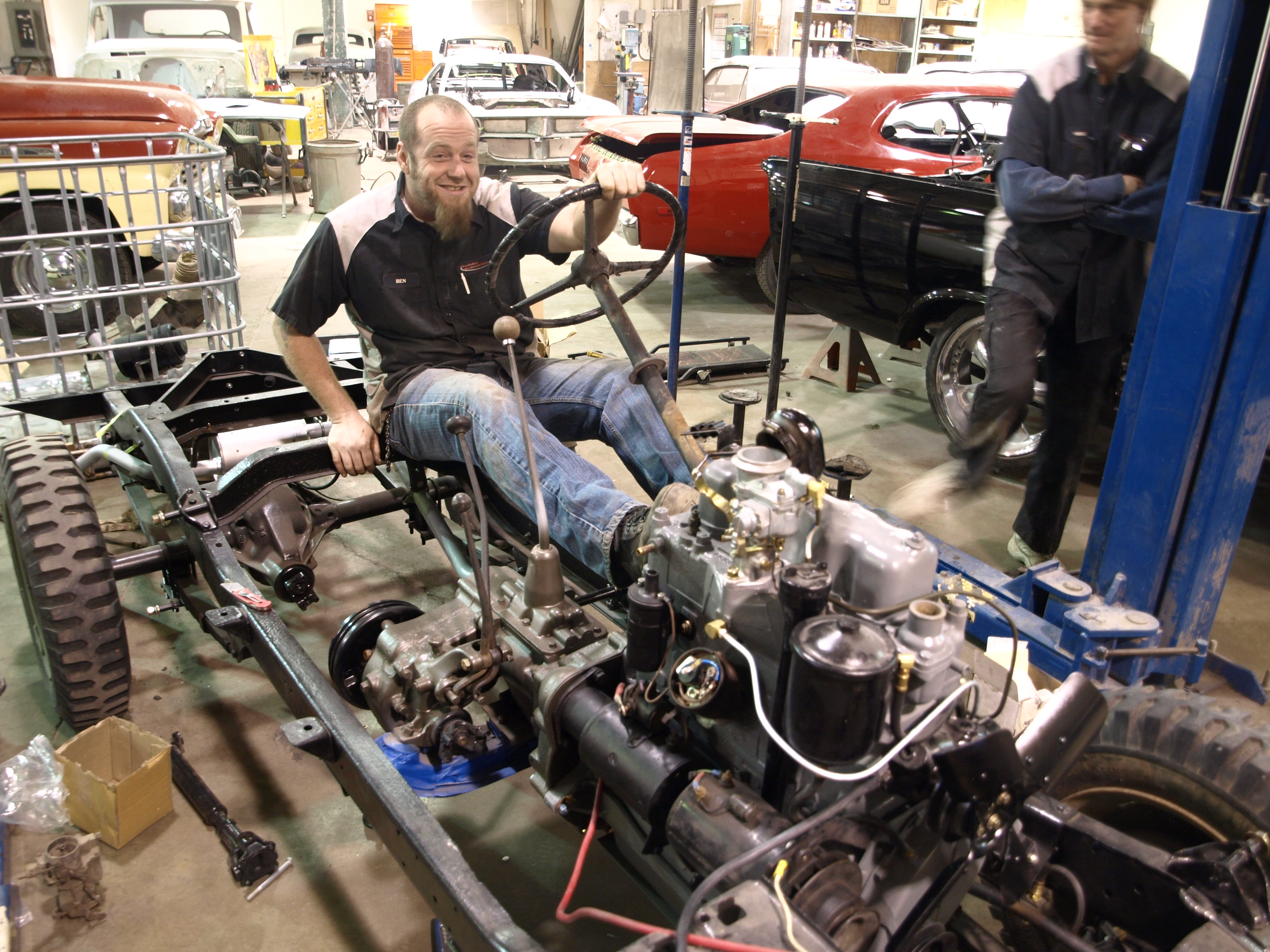

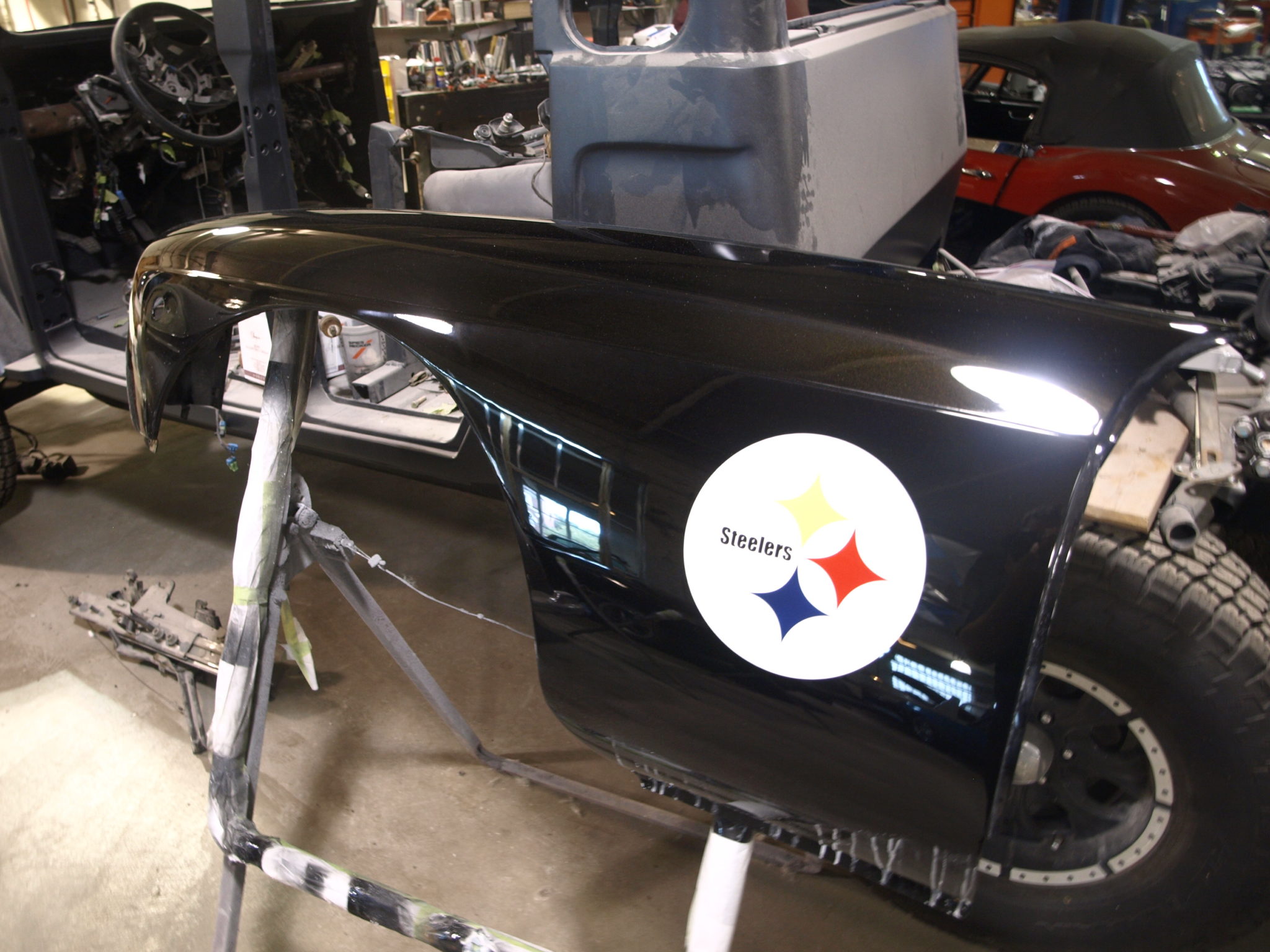

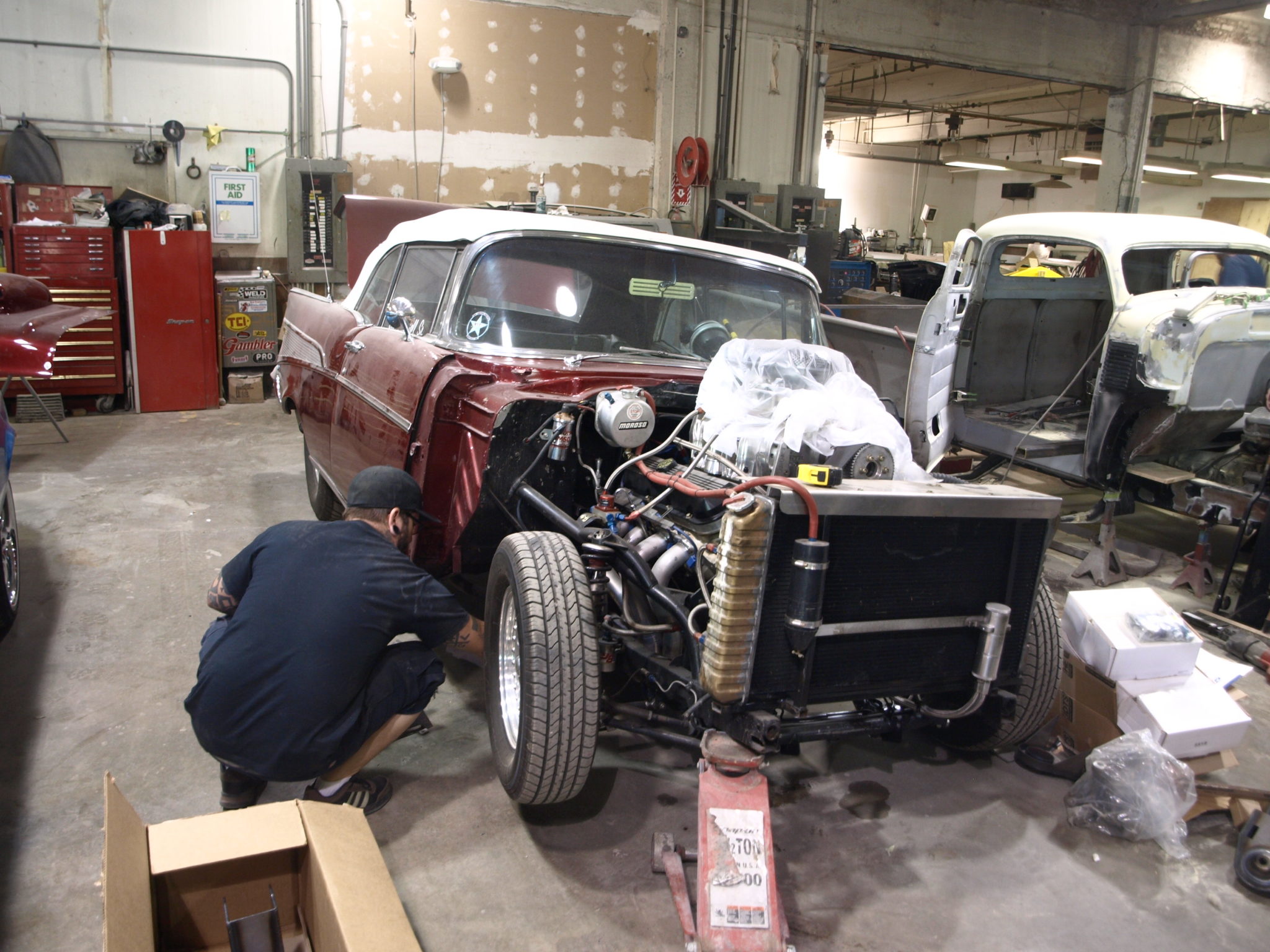

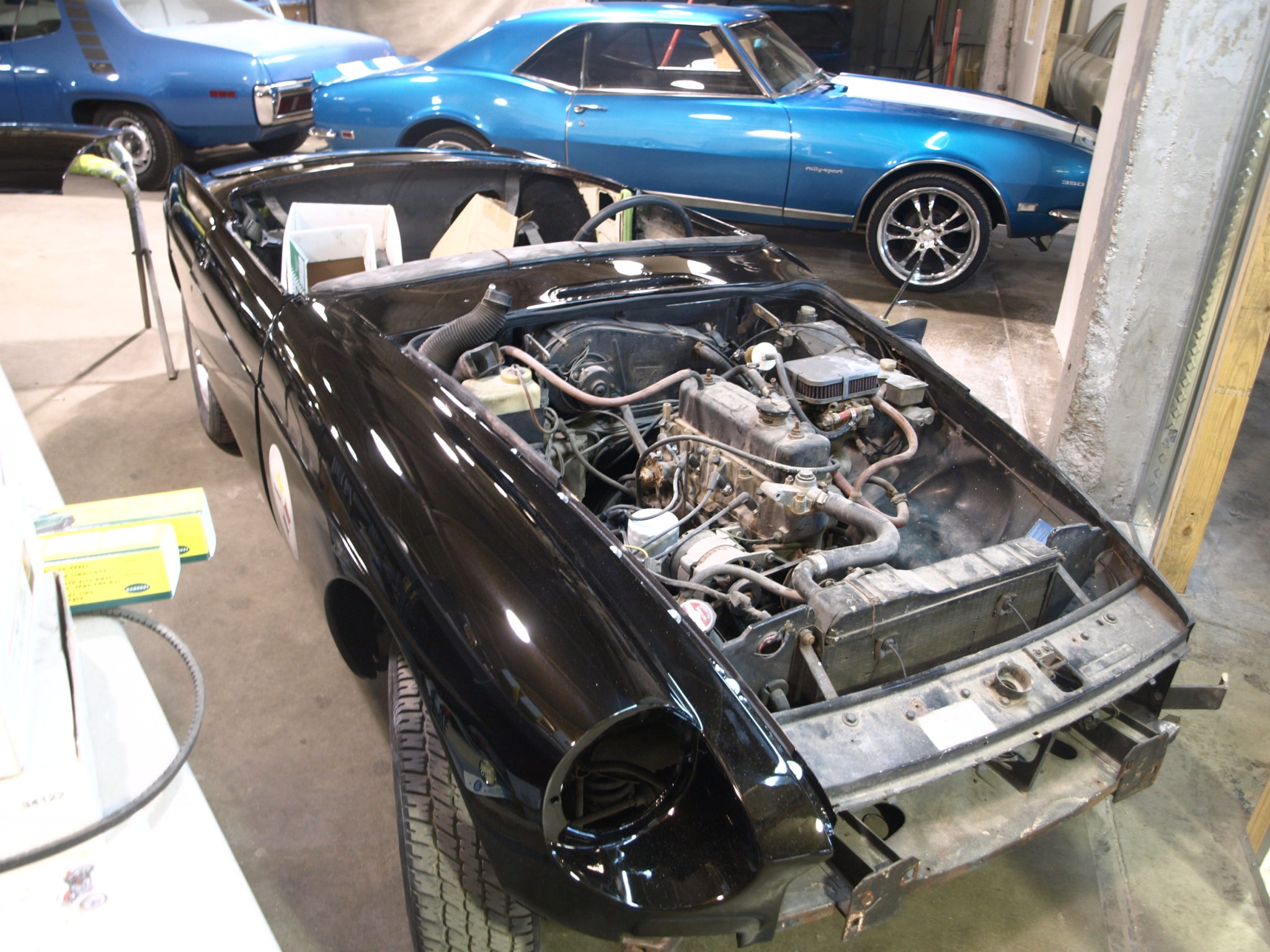

Thanks to our clients and the highly skilled craftsmen employed at Precision Restoration we have continued to grow in our market and are now looking to expand. Precision Restoration is seeking a qualified individual that is highly skilled in metal fabrication and body work to join our team. If you are a person with an appreciation for details, know your craft and can execute your skills we are interested in talking to you. All the information to contact us is here.



How it works, Rear suspension

leaf spring rear OLYMPUS DIGITAL CAMERA rear suspension



If you have had time to review our blog on front suspension you will recognize some of the same components in this post. The rear suspension historically has been similar to a straight axle suspension using either leaf springs or coil springs. Independent and coil spring rear suspensions are much more prevalent now than in the early days of motoring. In fact it wasn’t until the late thirties that coil springs were even used on rear suspensions, Buick has that distinction, you can read more about a 1938 Buick we just completed by clicking here. Prior to that rear suspensions equipped with coil springs were mainly found at the track, where, even then, research was done prior to production. Just like front suspensions we have many choices now when building our dream cars. Independent, leaf spring, coil spring and 4 link style to name a few.
For the purposes of this blog we will concentrate only on rear wheel drive vehicles, while there are some unique aspects of the rear suspension on front wheel drive vehicles, most classic and collectible cars tend to be rear wheel drive. What is so different about the rear suspension? The rear suspension is tasked with the duty of controlling the torque fed to the rear wheels, it also has to work with the vehicle for control and handling as well as ride. Installing the “right” rear suspension may be your ticket to better handling but which one is right for you and your vehicle. While we may be limited, at times, to which rear suspension we use there are several different companies that provide quality bolt on kits, or kits with very little modification needed, in different configurations for many popular models that the enthusiast may want to check into before getting the cutting torch out. For the purist, changing suspension systems in such a way is not a desirable option but when you have an incomplete car, or something that you don’t feel you want to restore to factory original, changing the style of the rear suspension of your classic or muscle car may be just the ticket to make it do what you want it to do.
As stated above, a rear suspension is not all that different from a front suspension except for its role in controlling the torque fed to the rear wheels. The two come together while driving, both the front and the rear suspension work to provide positive handling and a comfortable ride. The choices may be unlimited it seems but ride and handling are two things that need to be considered when beginning this project. A stiff suspension may provide excellent handling but as a daily driver the rough ride may take its toll on you, a happy medium can be easily reached but you need to know a few things, such as vehicle weight and how that weight is dispersed. For these very reasons I highly recommend you review your options and look at the kits being produced by companies such as our partner, Heidts Hot Rod and Muscle Car parts. Another area where there is a little more freedom for modification is adjusting the vehicles wheel base. Not a popular modification, relocating spring shackles on a leaf spring suspension, or moving the pin location for the axle housing can greatly affect vehicle performance. Shortening, or lengthening, the wheel base will make for a quicker handling or smoother riding vehicle but, more importantly, it will change the weight distribution of the vehicle and also changes the way the weight is transferred on acceleration. Making this change, easier on some cars than others, can greatly improve traction on a hard launch, or provide tighter handling. As with anything do not make drastic changes like this without properly researching different packages and looking at several options before deciding on one that will meet your needs and expectations. Years ago Chrysler offered a complete chassis manual through, then, Direct Connection, now known as Mopar Performance.

direct connection Mopar

This manual, along with the one they offered for their engine line up was a bible for all things Chrysler, Dodge and Plymouth when it came to performance and the engineering involved. Dealing directly with the geometry that someone has already taken the time to do for you is considerably easier and will provide for a more positive experience.
Changing wheel base or the type of rear suspension, leaf spring to four link for example, will dramatically change handling and weight transfer. If you plan on your classic or muscle car to be a door slammer and looking at how to put that power down the driveline and control it, you need to consider what the right type of suspension is right for you. Equally, if looking for a road racer that can straighten out the curves ahead there are options to consider as well. To maintain a quality ride and still retain traction leaf spring style suspensions are a great option and, with fewer moving parts and fewer bushings, they are easier to maintain. Solid, live axles also provide more durability than and independent differential as the axle shaft is splined directly into the ring gear versus having constant velocity or universal joints to allow the axle to travel independent of the third member, or differential. For an owner that likes to feel the way a vehicle handles on a tight winding road then going as far as an independent rear differential style suspension may be the right choice for you. Four link systems are also very effective in controlling classic and muscle cars with live, solid axles on those curvy driving roads.
A leaf spring suspension is very much like what we briefly discussed in the post prior to this dealing with front suspensions. OLYMPUS DIGITAL CAMERA live axle rear suspension

While many older cars used a transverse mounted rear leaf spring most modern cars using a leaf spring type, or Hotchkiss, suspension use leafs at each side. Here is why this set up is so well suited for straight line full bodied drag cars, or door slammers. Leaf springs are comprised of multiple layers of springs, this provides the opportunity for the owner to fine tune his ride based on what his intentions are. Adding or removing springs changes the overall dynamics of the weight shift on hard acceleration. Too stiff and the weight transfer will not be effective, too soft and handling will be affected. Obviously the ability for you classic car to handle you and your luggage can be affected with the addition, or subtraction, of leaf springs. This goes back, again, to thinking about what you intend to use your car for. Leaf springs do have some disadvantages, wheel hop being the most predominant. Others complain that road racing is not very conducive to leaf springs, this concern is as much the fault of the solid axle as it the springs but that is only my opinion. The thing we need to remember is that the shock absorbers not only control ride but also help maintain contact with the road, leveling out the rebound of leaf springs is different than controlling rebound on coil springs. Research your options and you can build a very nice leaf spring suspension that will provide a very nice ride and good handling with very little expense.

ladder bar Leaf-coil

Coil spring type suspensions come in several different configurations, four link, link coil and swing arm (or ladder bar) to name a few. Most coil spring suspensions will use one of these styles but others, independent type suspensions in particular, may use control arms and be set up similar to what a front suspension would be. Independent suspensions use a fixed differential and drive axles similar to front wheel drive vehicles. Coil spring suspensions are easily tuned and using a coil over shock style, as found on many custom built chassis’, make ride, handling and weight transfer nearly infinite in adjustment. The same premise used for leaf spring suspensions comes in to play here, by choosing springs with a lighter, or heavier spring weight the owner has options to meet his handling, ride and traction needs. Independent or coil spring suspensions can be adapted to vehicles that were previously leaf spring style suspensions but we would strongly recommend using a kit, similar to those offered, again, by Heidts Hot Rod and Muscle Car parts.

rear suspension rear
Coil springs provide for a very smooth ride and incorporating an independent rear differential greatly enhances not only the ride but also handling. Independent differentials allow the wheels to travel “independent” from each other ensuring that the tires remain in contact with the road surface. The major drawback of coil spring, and especially coil spring suspensions with independent differentials, is price. With more moving parts maintenance needs are also increased over leaf spring style suspensions.

four link rear rearcoil
Coil spring suspensions typically use control arms but not in the same sense as a control arm on the front suspension. Some will call these radius arms or lateral arms and will have two that attach the lower portion of the axle housing and then two other rods attached to the upper portion. The purpose of these rods, or control arms, is to maintain pinion angle on the differential. A swing arm style is similar to many motorcycles with one pivot point and the spring sandwiched between the body and the axle. A four link or coil and link suspension maintains consist pinion angle when driving over rough surfaces and with more attaching points the differential is considerably more solid than a swing arm. Independent rear differentials have the “pumpkin” mounted solid making it part of the sprung weight, this becomes an advantage as the weight working with the springs is greatly reduced and focus can be made on handling.
Sway bars serve the same purpose on the rear as they do on the front. Often the rear may be of a different diameter, based on the weight of the vehicle and the distribution of that weight. Increasing the diameter of the sway bar will provide great control of body sway through those turns whether at the track or just getting on and off the highway on those long sweeping clover leafs. As we are all aware, most classic and muscle cars are larger and quite hefty, controlling this weight is what the suspension is designed to do and a quality sway bar, front and rear, should be a part of any suspension.

panhard4 link with panhard bar
If you choose to use a solid axle differential another piece that you might find nice is a panhard rod/bar. Used frequently in ladder bar style suspensions, this bar is mounted transversely and attaches to the frame and the axle, this same component greatly improves the handling of a solid axle front suspension as well. This rod controls the lateral, side to side, movement of the axle, improving performance on turns, or in the case of front solid axle suspensions, wheel lift.
Ultimately it all boils down to you and what decisions you make and how those decisions coincide with your wishes. Ability also comes into the equation we are trying to solve. If your shop is properly equipped and you are skilled as a welder, great, but much of the work required when doing these suspension modifications will require good quality welds. Before welding these components in you really need to spend the time mocking up the components in place to ensure proper alignment and positioning, not only on the frame but also correct pinion angle. Just like cutting a board, measure twice, cut once, make sure everything is where it should be before you begin to tack it into place. Some kits are very user friendly and are bolt on. This certainly provides a great deal more flexibility when setting it up but when you have everything set I would still recommend welding the system into place, bolts loosen and unless you are going to check the torque regularly you are going to have problems.
Price has been mentioned a few times, obviously the more elaborate you go the more expense you will incur. Doing a pro-street set up will require a large amount of modifications, converting a mono-leaf to a parallel leaf spring style, not so much. If you question anything about your ability to do it yourself, hire a professional. These are not the type of modifications that you want to take chances on.
Look forward to upcoming posts on steering, driveline, fuel and ignition systems before the evolution series continues.

National Car Show events July 18th – July 20th 2014

carcraft nationalselvis2

Chevrolet Performance is hosting the Car Craft Magazine Summer Nationals in St. Paul, Mn. this weekend. Click here for all the details.

If you happen to be near Lake Bluff, Il. then stop in Knauz Autopark Friday night, the 18th, for their annual cruise. Who knows, you might get to meet Elvis. He is scheduled to perform. Click here for details. T.C.B.

Also this weekend is the 18th annual Gathering of the Eagles Car show at the Air show in Willoughby, Oh.. Partnered with the air show presented by the United States Aviation Museum, this should be a really terrific event, even if Elvis won’t be there. Click here to go to the Aviation Museum for all the details.

This Friday and Saturday Gonzales, La. is having their annual Swamp Pop Music Festival and Saturday, among all the activities is a massive car show. If you are in the area click here to get all the details. Look over the rest of the event to see all the live entertainment, looks like a good time on the Bayou.

Car Shows, St. Louis area, for the weekend of July 18th – July 20th 2014

car show car show 4 car show 7



If you are in the mood to take a drive during this fine weekend of temperatures in the low eighties there are some great shows at some great destinations just for you.
Sunday July 20th Owensville Threshers Association will have a car show. Held in Rosebud, Mo. This will be the 52nd such event and coincides with their threshing show held this weekend. Beyond the cars that will be there this is a great opportunity to see large antique steam operated farm equipment both on display and providing demonstrations throughout the weekend.
Saturday July 19th Affton Father’s Club car show is being held at Affton High School, 8309 Mackenzie Road. This looks to be a great event with drawings and attendance prizes every hour.
Saturday July 19th Grease Gears and Grooves Bike & Car Show 10am till 6pm. Held at Sunset Ford’s old lot at Gravois and Lindbergh in SUNSET HILLS, MO. This is a great event with live entertainment and all proceeds go to benefit Children’s Miracle Network and Bikers Against Child Abuse.
If you have a local event that you would like for us to send out to our followers please submit to john@precisioncarrestoration.com
Thanks, have a great weekend.

Evolution of a Resotration pt.5

Evolution of a Restoration pt.5

From this;

OLYMPUS DIGITAL CAMERA

To this!

OLYMPUS DIGITAL CAMERA

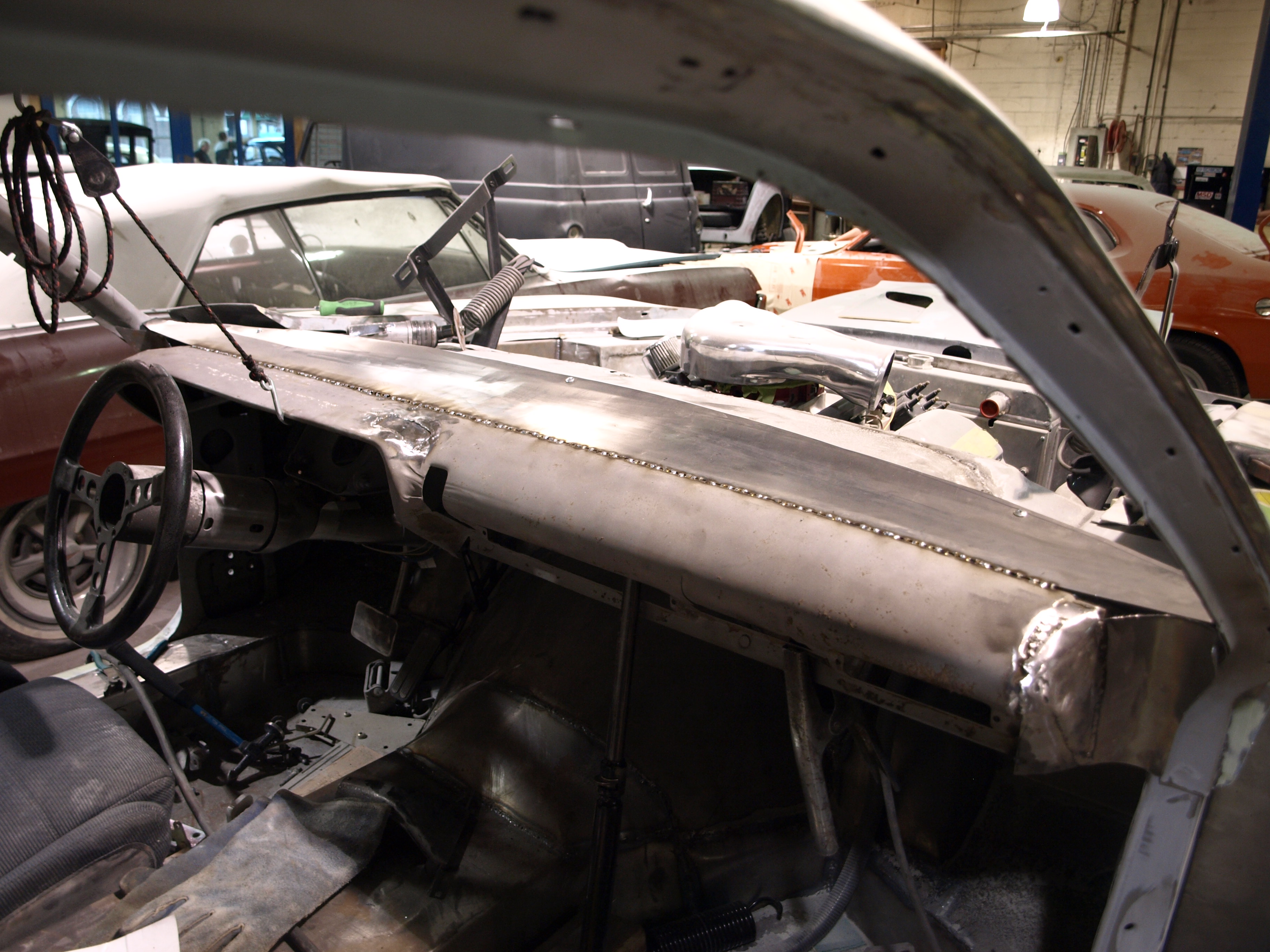

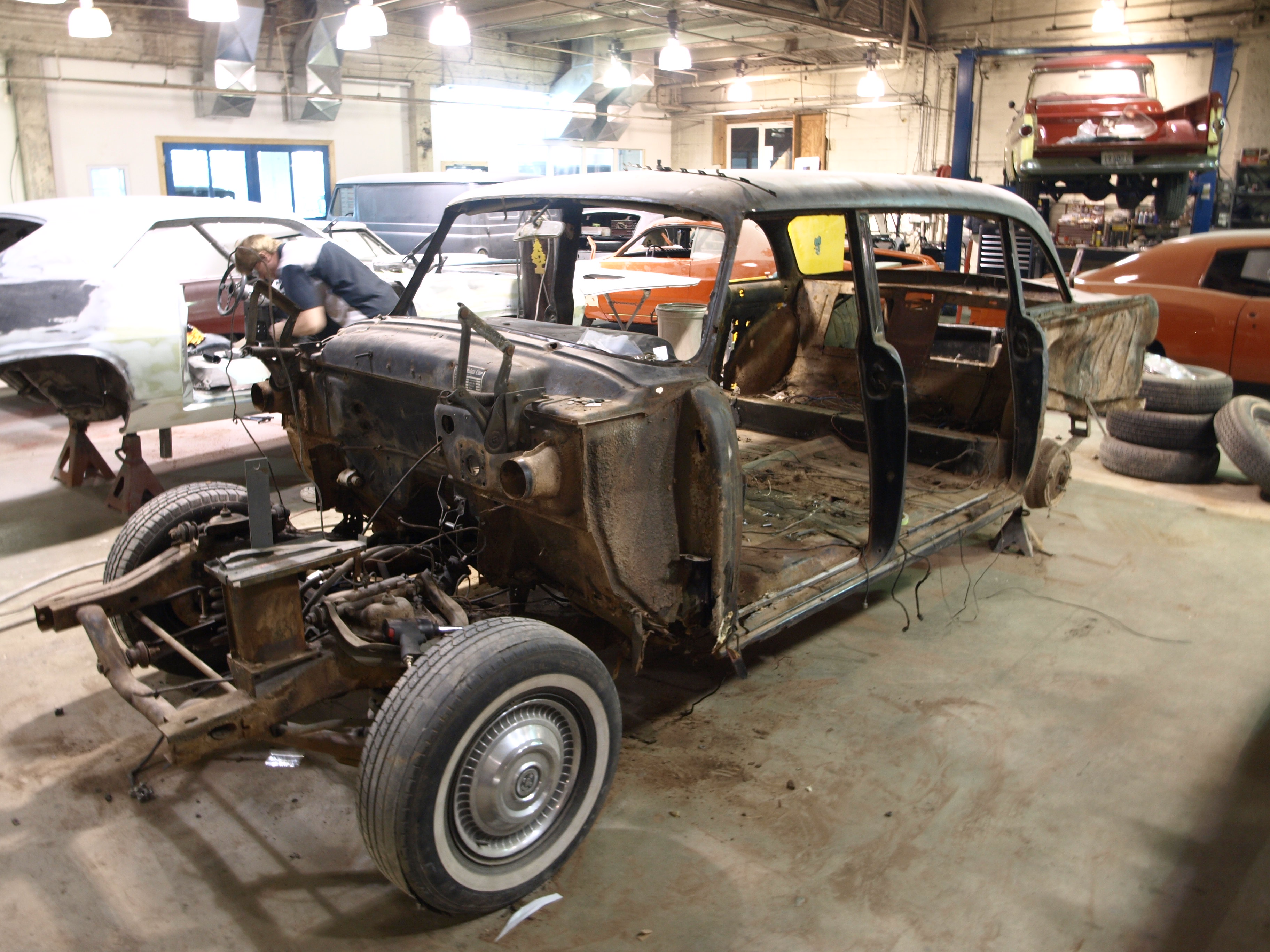

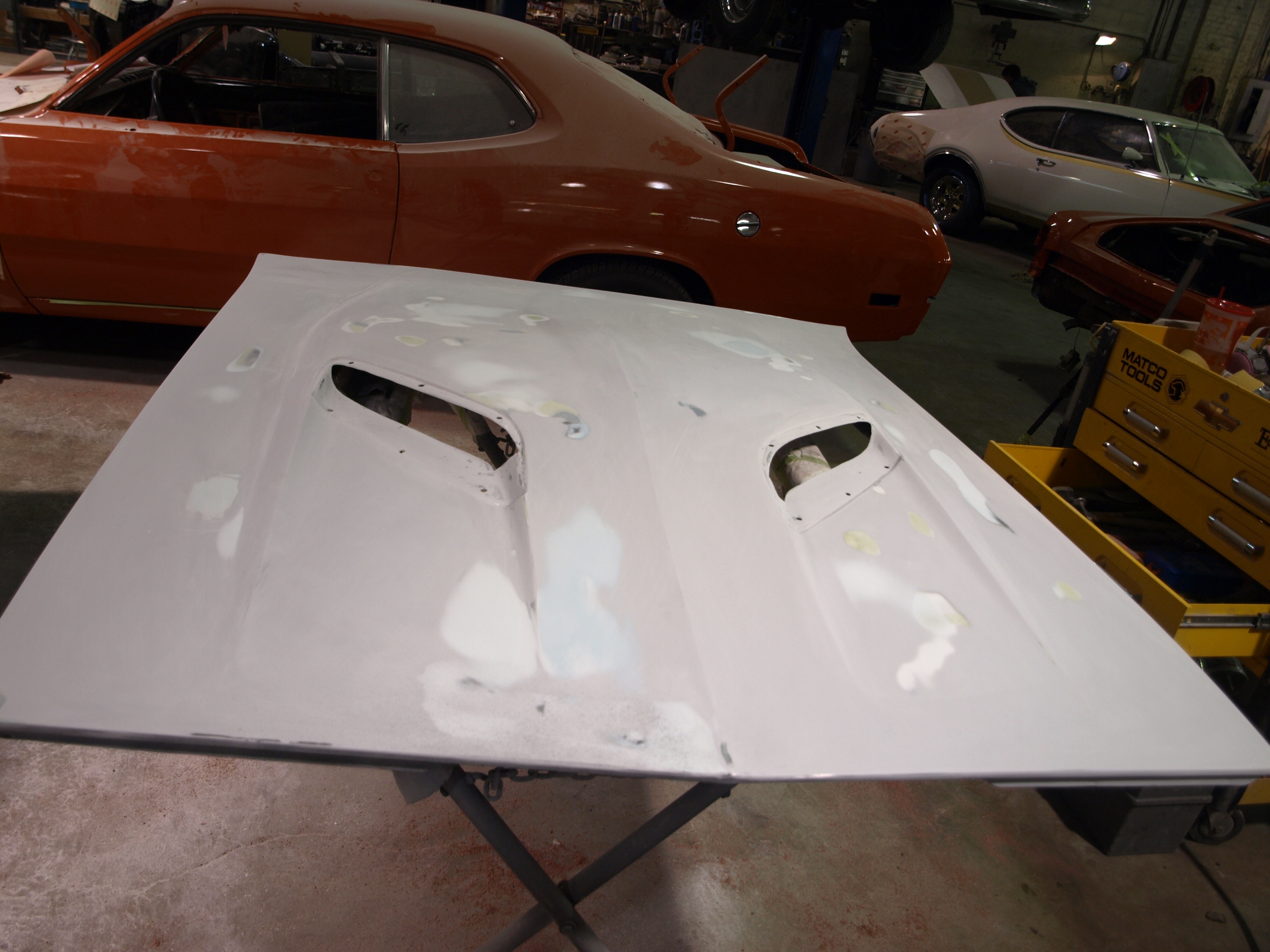

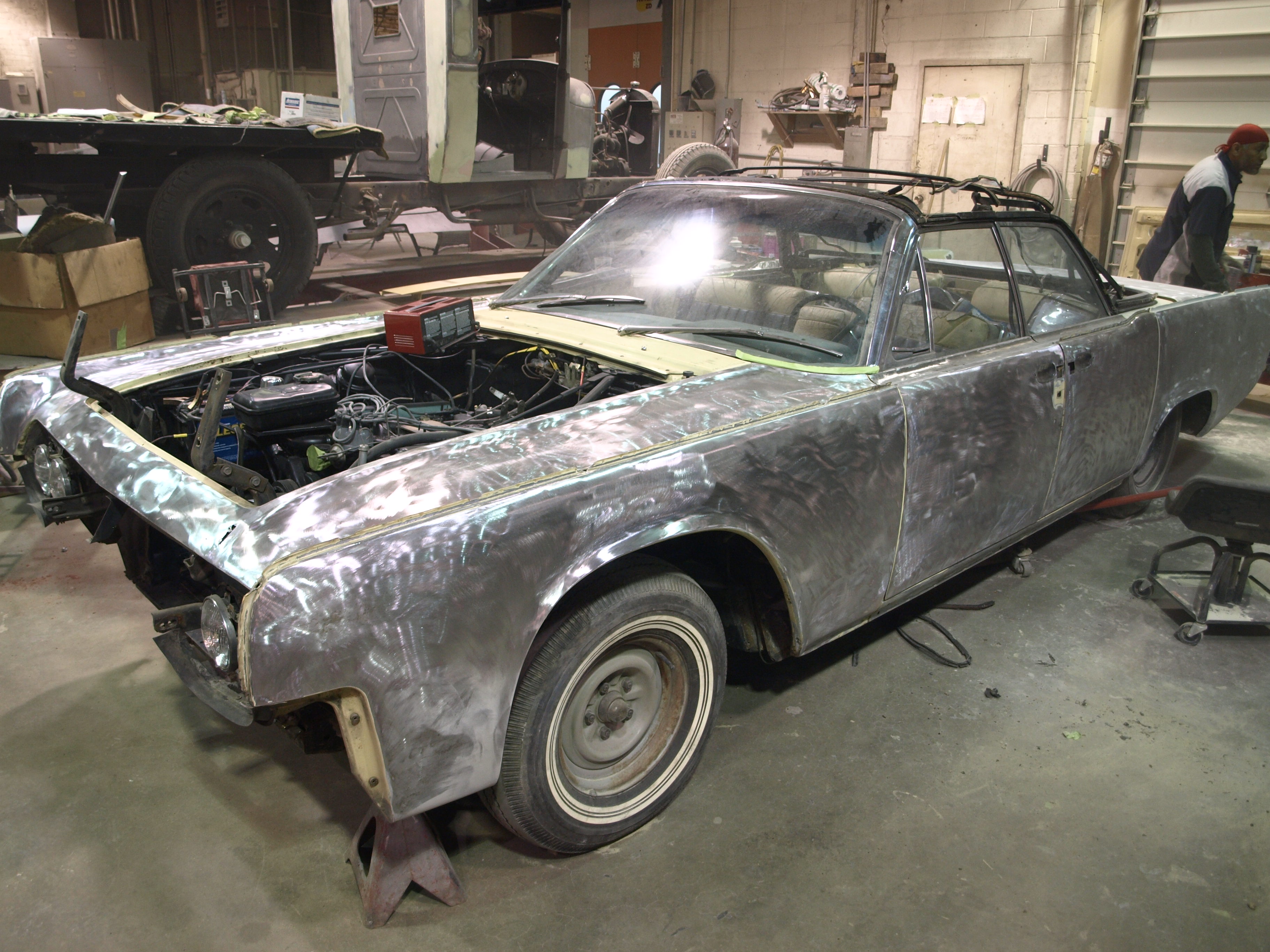

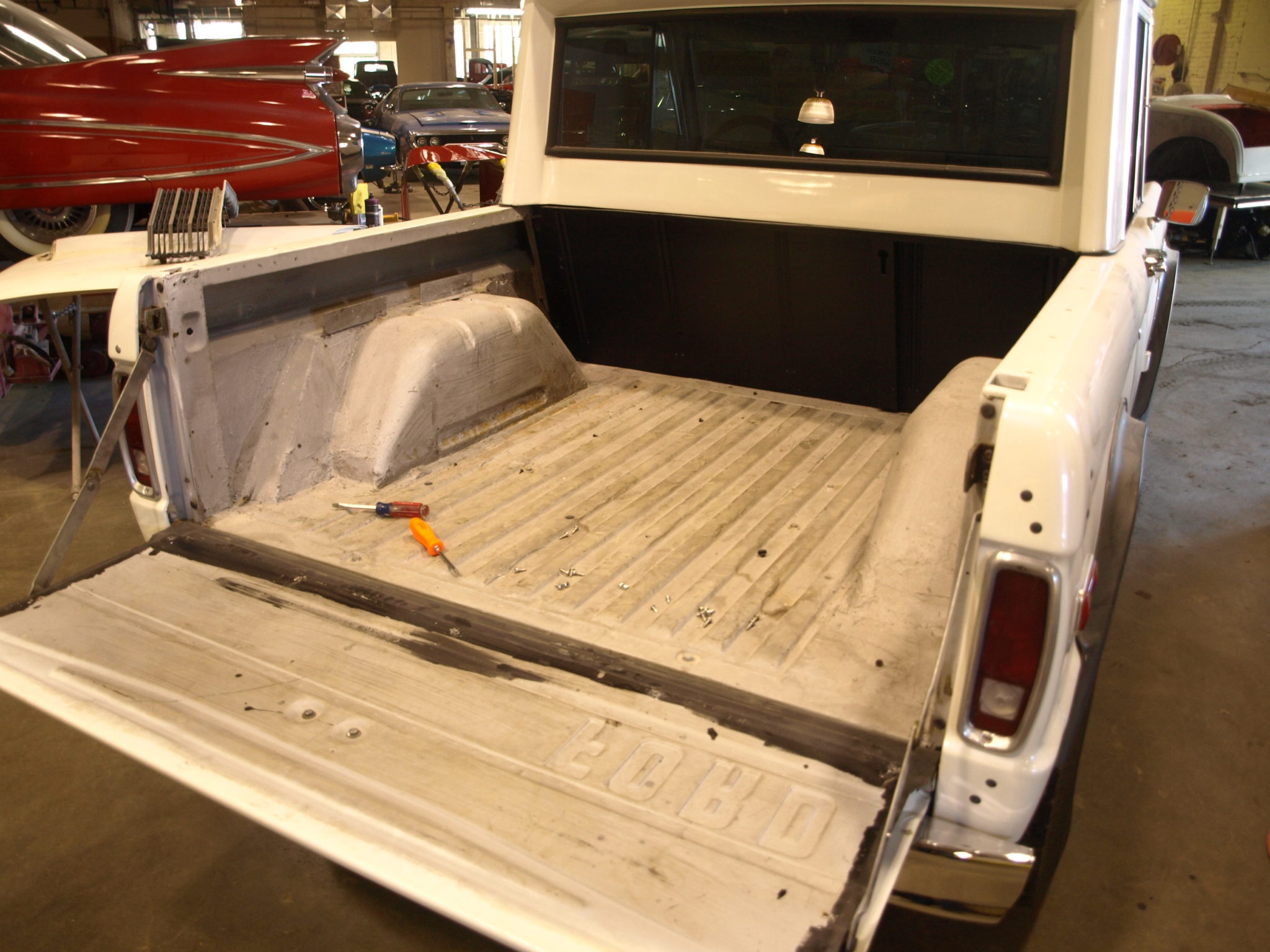

We have now replaced our plans and sealed and prepared it for paint as we briefly outlined in pt.4. We have reviewed installation of complete as well as rust repair panels and they are now installed, worked and in prime. The next step would be to begin an in depth look at the rest of the body, were there any small imperfections that had not been repaired yet, are there wrinkles or waves in the panels that have went unnoticed? We prefer to work on whatever panels we can, off of the body. This provides an opportunity to inspect each component as we progress in preparing the body and its components for paint.



OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA

For this discussion we will use a door as an example. The door should have already been de-trimmed and the glass removed. We really only want a stripped down door at this point while we inspect for any rust that we may have missed during the initial inspection. Closely inspect the lower portions of the door, both the inside surfaces as well as the outside panel. Use a light to allow better visibility inside the door and look for flaking or dust. What you find needs to be removed and the door cleaned of any rust residue. The door, as well as the other panels removed, fenders, trunk lid and hood, all need to be stripped of their finish as well. Any old repair work needs to be ground out so that what you have before you is a clean, ready to prep door. Use an Etching primer to seal the door, inside and out, to ensure the metal is treated correctly to reduce the occurrence of any future corrosion issues. Looking at the door you may not notice any imperfections that need attention, that’s good, but we need to apply a coat of high build primer on the surface and block the surfaces to eliminate any of the waves often found in the surface. This step needs to be repeated multiple times and with varying grits of sand paper. While some of the sanding of the surfaces to prepare for a smooth finish may be completed by hand the large areas of the panel not impeded by character lines and tight curves should be done with a sanding block.

Block Sanding;

sanding block4 sanding block 2 sanding block 3 Sanding block 3m Sanding block1 sanding block 8 sanding block 5 sanding block 6 sanding block 7
Block sanding is a term used when using a rigid base for the paper used to sand the finish on a panel. While our hands are firm they are not flat and rigid like a block would be and when our hand is used we will not apply equal force across the sandpaper and will end up with waves and imperfections in the painted surface. There are several different styles and lengths of sanding blocks. Small blocks that are just slightly over 5” long are great on smaller panels or smaller areas of a panel where some of the larger blocks are not effective. Longer blocks, 11” and 16” work very well for larger areas, such as the sides of doors, the large flat areas of the hood and deck lid. Suppliers also manufacture rounded blocks as well to assist in repairs to surfaces that flat blocks will not work.



800 sandpaper 1200 sandpaper1 220 sandpaper roll 220 sandpaper 400 sandpaper roll 400 sandpaper

The first pass on the door with the sanding block should be done with a medium grit paper, 180 grit moving to a 220 grit paper once you feel the panels meet your requirements. This is a relatively aggressive paper and will remove the primer material quickly so you have to look at the panel while you are sanding. Moving the block in a back and forth direction at a 45 degree angle will prevent sanding a groove that will be visible in you paint. In this fashion move back and forth over the surface cleaning the dust build up from the surface frequently as you go.
While “blocking” the surface you may begin to notice areas in the primered surface that are darker and appear not to have been touched by the sand paper. These areas are the high and low areas that you are looking to correct. Through training and experience you will begin to understand when these areas will require more metal work or other attention before continuing. It is not the job of the primer, and the primer will fail, if used to fill anything more than small imperfections in the surface. If there are areas that are low and do not sand out properly then the area needs to be assessed to ensure it is not a high spot rather than a low spot in the surface, then repair as necessary for a straight panel. As you progress the final finish sand should be conducted with a 320 then a 400 grit paper that will remove any of the previous sand scratches from the heavier grit papers. A typical progression for block sanding will be 180-220-320-400. After the final sand on the panel it should appear smooth and without imperfections.

Next comes the test fit of the panels. In a previous blog we talked about the proper way to align panels on a vehicle and I have attached it here to help you with this step.

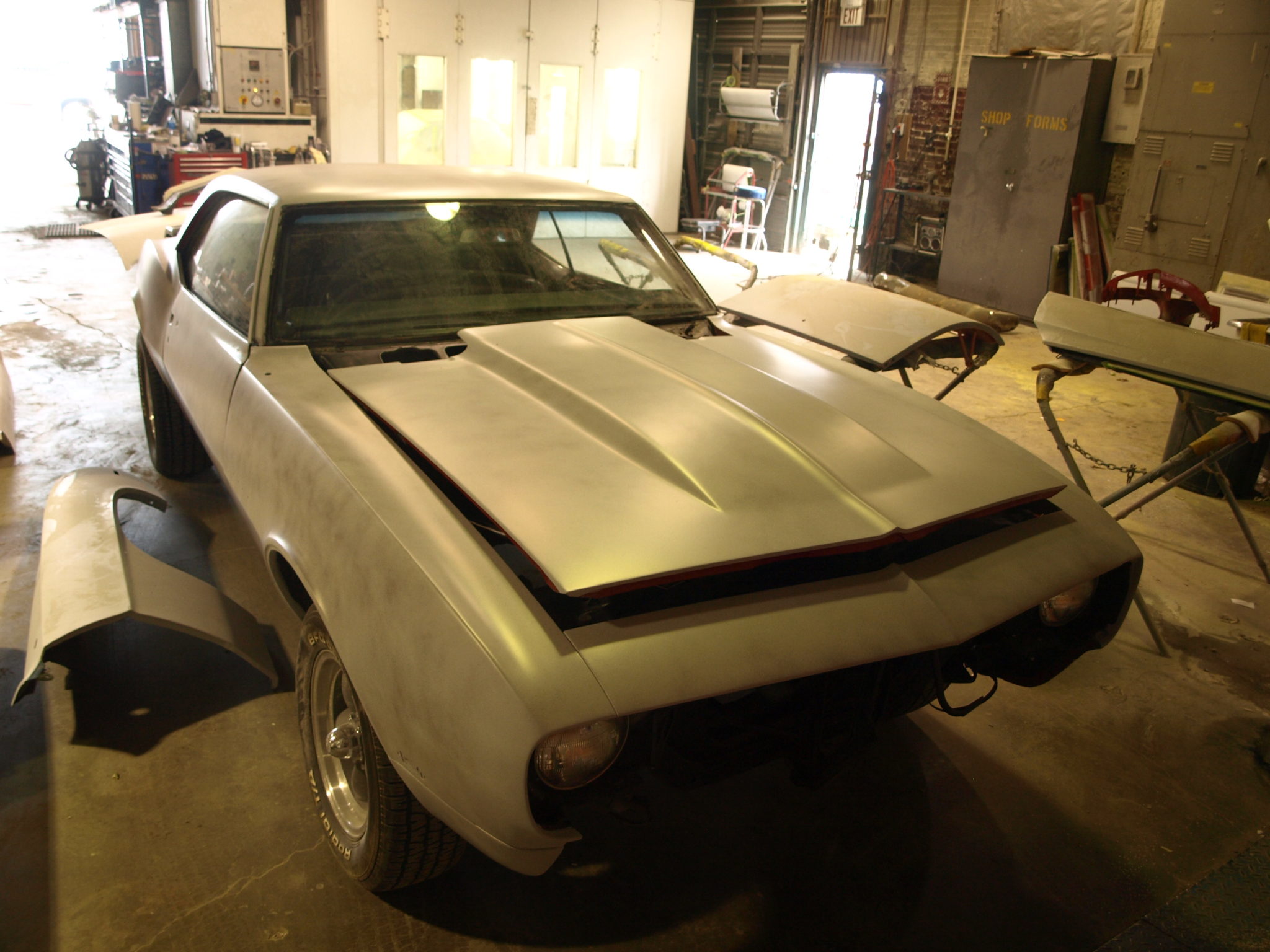

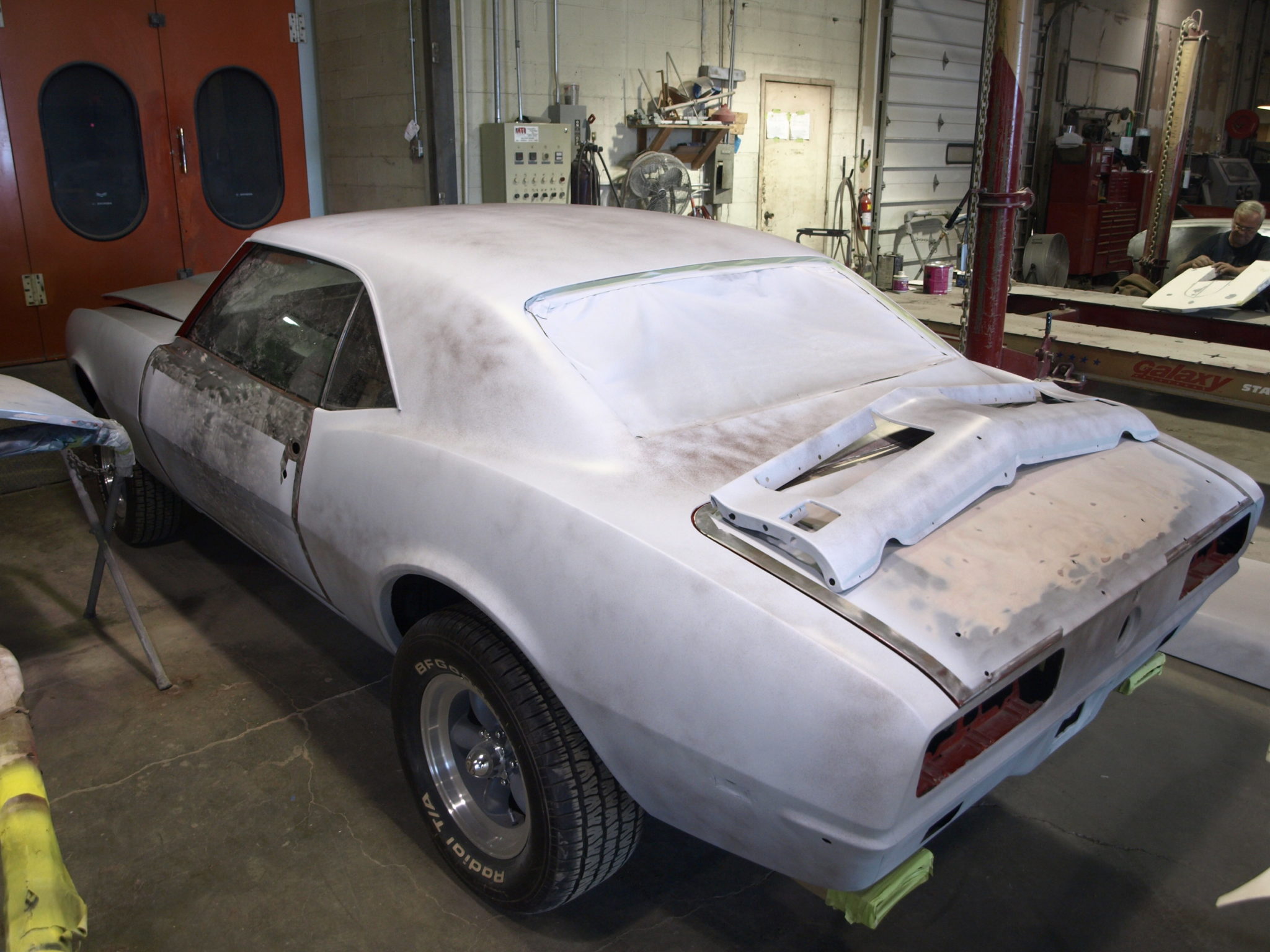

This step is exactly what it is, a test fit. We need to make sure that the panels are going to align correctly with the body with proper gaps and fit along character lines. We also need to align the doors to open and close correctly and the fenders need to be fit to ensure proper body alignment against the doors. We test fit and align the panels at this time so that we have a larger margin of error than we would with a completely finished car but also to see what work we need to do to correct poorly aligned panels.

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA

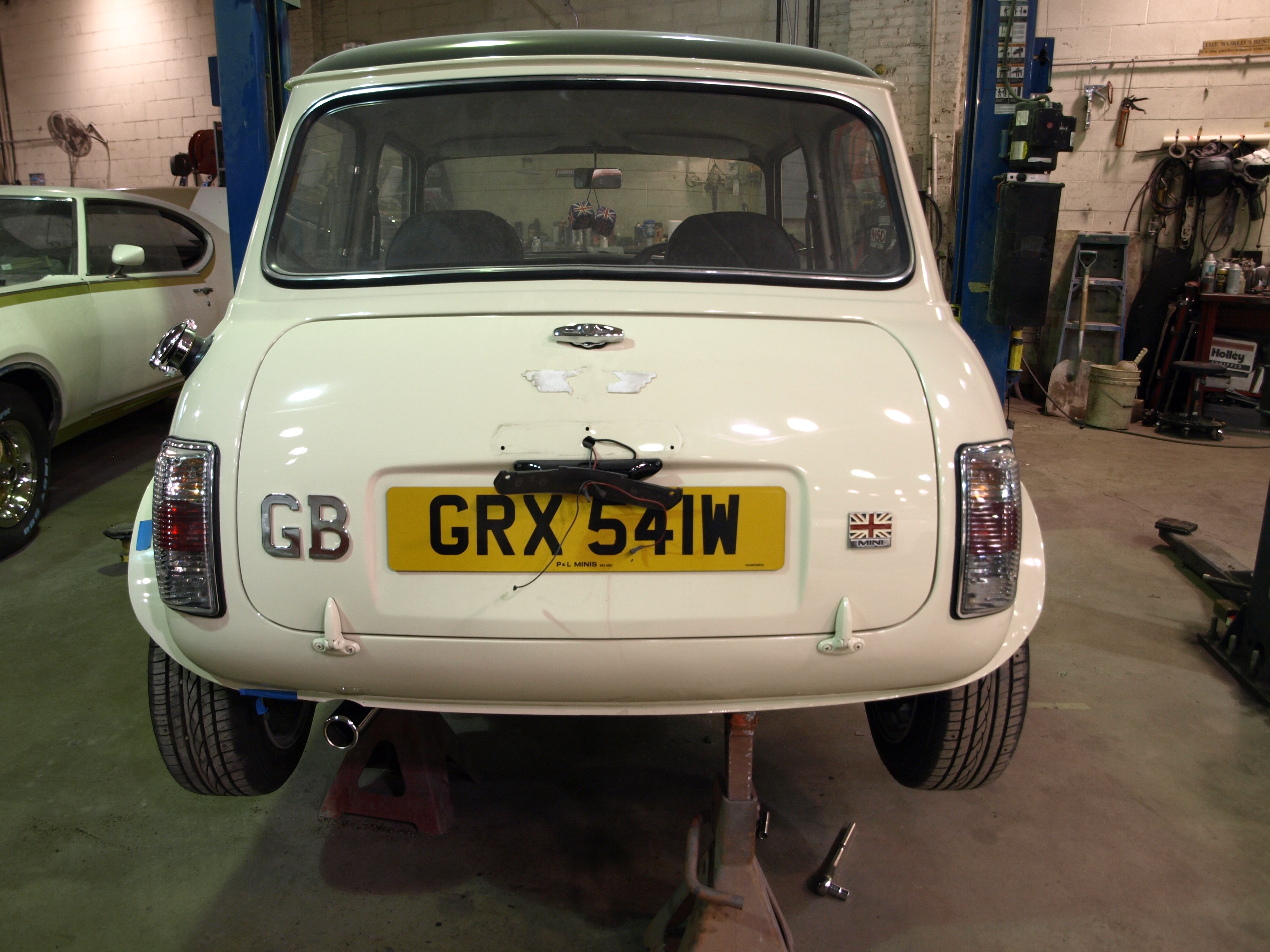

This is also true for bumpers, in the pictures above the new quarter panels we installed fit poorly in relation to the lines on the bumper, in this instance we split, welded and metal worked the replacement panel so that we could achieve the fit and finish desired. In the other photos you will note that we did the same thing on the body so that we could get the proper fit for the door opening. Despite all of the work you may have put into installing the quarter or replacing the fender or putting on a new door skin, there may be times where it becomes necessary to do more metal work on the panels and we don’t want to have to address such concerns with a body that is in color. Like the other steps, this one is to make sure that everything is right before painting the surfaces. Paint is expensive and when we reach that stage we want everything to be right, why waste money on materials when you can take the time to make sure that when the paint is sprayed you have done everything in your capacity to make sure the body is prepared correctly.

OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERAOLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA OLYMPUS DIGITAL CAMERA

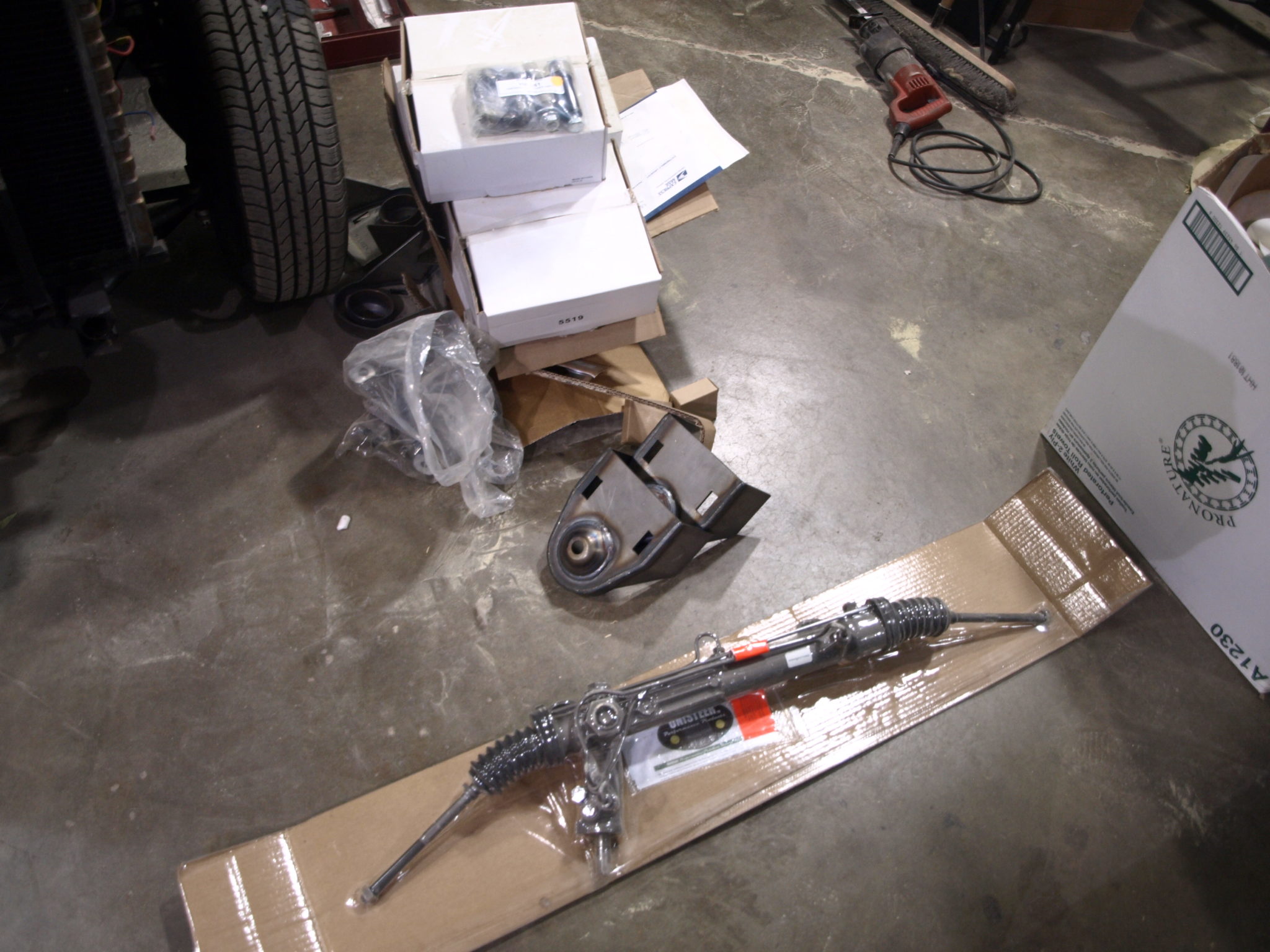

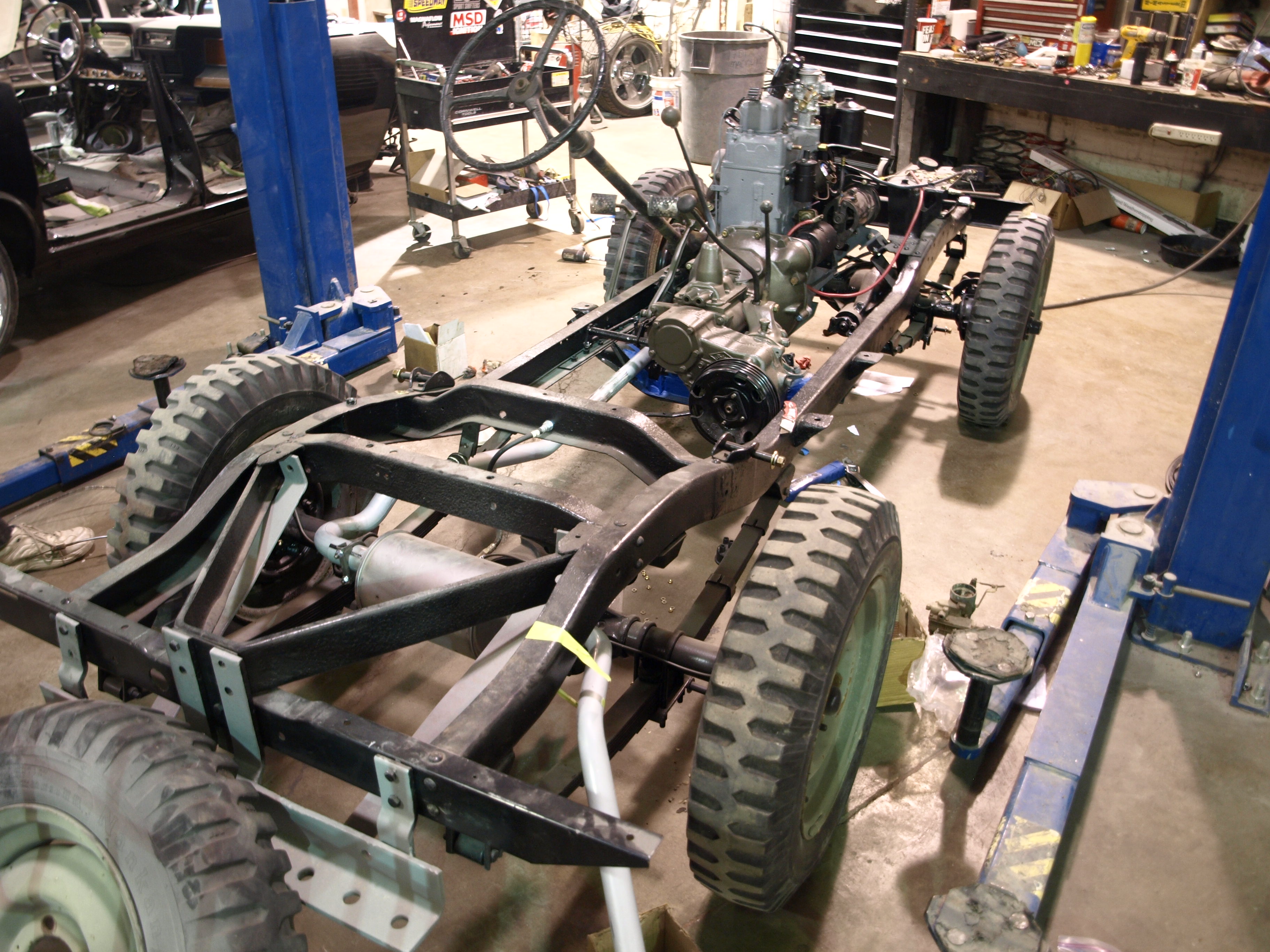

In the next installment we will discuss suspension, frame and steering.

St. Louis area Car shows for the weekend of July 11th – July 13th.

121_0341 car show 7 car show 4

JUL 11 FRI ~ Randy’s House of BBQ Car & Bike Cruise ~ 6pm till 9pm ~ Dash Plaques 1st 50 Participants ~ Attendance Prizes ~ 50/50 drawing benefiting Partners for Pets -You can even take a new pet home ~ Live Music, Second ~ $12.00 sides of baby back ribs~2nd Friday of the month April-October ~ location: next to ACE hardware at 2469 Northtown Way ~ HIGHLAND, IL

JUL 11 FRI Cruise-Nite Coulterville Dairy Queen ~ May thru Sep ~ hosted by Grand Cote Cruisers Car Club ~5pm till 9pm ~ 50/50 Drawing ~ Employee Choice Award ~ Attendance PrizesDJ 50’s & 60’s Music ~ Price Specials each date plus Attendance Prizes ~ Dairy Queen, ~ COULTERVILLE, IL

JUL 11 FRI ~ Misfit-Toyz Car Club Cruise ~ May thru Oct ~ info: (314) 306-0525Steak ‘N’ Shake, 1300 Lemay Ferry Rd ~ST. LOUIS, MO

JUL 12 SAT EDDIE’S TRAVEL CENTER & HUDDLE HOUSE RESTAURANT CAR CRUISE (Memorial Cruise for Rich Jerashen) ~ hosted by THE PISTON PUSHERS CLASSIC CAR CLUB, INC. ~ 6pm till 9pm ~ Dash Plaques ~ Attendance Prizes ~ 50/50 Drawing ~ D.J. MUSIC by The Piston Pushers ~ info: email location: Exit 23, Rt. 4 off I-64 near MidAmerica Airport, address 9810 Perrin Rd ~ MASCOUTAH, IL

JUL 12 SAT 2nd Annual Culver’s Car Cruise ~ 2nd Saturday each month ~ presented by “The Stang Gang” ~ all makes and years welcome ~ Music by DJ Don ~ Attendance Prizes ~ 50/50 Drawing ~ No burnouts or alcohol, not responsible for accidents, damage to or loss of property ~ info: (314) 845-0964 ~ located at 4140 Rusty Rd.- ST. LOUIS, MO

JUL 12 SAT Hyway Rockers Super Cruise ~ 6pm till 9pm ~ Dash Plaques ~ Valve Cover Races ~ Attendance Prizes ~ 50/50 Drawing ~ DJ Music ~ Manager & Employee Trophies every show ~ info: 314-691-1308 or email or www.hywayrockers.org ~ location: Burger King in Pevely @ I-55 and Z Highway ~ PEVELY, MO

JUL 12 SAT 37th Annual Mustang Round-Up & All Ford Car Show & Swap Meet ~hosted by Southern Illinois Mustang Club ~ register 8am till Noon, $20 Fee, $15 Display & $5 Swap Meet space ~ Rain or Shine ~ Special Trophies & Awards ~ info: (618) 578-7696 or (618) 259-6790 or email ~ located at Roberts Ford, Homer Adams Parkway – Alby Street ~ ALTON, IL

JUL 12 SAT 1st Annual Mertz Ford Classic Car Show ~ register 9:30am till 11am ~ Entry fee $20 or $15 with can food items to support our local Food Pantry ~ Custom Trophies ~ BBQ by Smoking K’s ~ Net proceeds benefit “Make A Wish” foundation ~ www.mertzford.com ~ held on Mertz Ford lot, 100 E. Washington ~ MILLSTADT, IL

JUL 12 SAT Belleville Car Cruises ~ 6pm till 9pm ~ Free Registration ~ Dash Plaques to all Free Bratwurst to each driver ~ 50/50 Drawing proceeds to Violence Center ~ DJ Music ~ info: (618) 476-3175 ~ Location, 1st, 2nd & 3rd Streets on West Main in Belleville (from square to Firestone) ~ BELLEVILLE, IL

JUL 12 SAT St. Martin Of Tours Church Cruise & Ice Cream Social, celebrating our 75th Anniversary and hoping to enhance their Ice Cream Social with plenty of vehicles that were born back in the day also! ~ Lot opens 6:30pm. No formal registration ~ Three Ladies’ Choice awards to be given throughout the evening ~ 50-50 Drawing Benefits St. Martin Of Tours Catholic Church ~ DJ, PA + radio or iPod ~ info: (636) 285.3673 ~ location: St. Martin Of Tours Church,Telegraph Rd, North of 255 & 1/2mi North of Reavis Barracks at 125 W. Ripa ~ ST. LOUIS, MO

JUL 12 SAT McDonald’s Car Cruise hosted by The Time Machines Unlimited Car Club Car Cruise~ 6pm till 10pm ~ ~info: (618) 792-8901 ~located: McDonald’s, 1150 Vaughn Road (on Rt.111 ~ WOOD RIVER, IL

JUL 12 SAT Read ‘N Roll Car Cruise ~ 10am till 2pm ~ Attendance Prizes for Participants, Music, Balloon Artist, and Face Painting ~ info: (314) 388-2400 ~ location: Baden Branch Library, 8448 Church Road ~ ST. LOUIS, MO

JUL 12 SAT ~ Car Cruise & Drive-In Movie in celebration of National Collector Car Appreciation Day ~ Car Cruise followed by a drive-in style movie at dark. Showing “Driver”. NCCAD Proclamation Award to The Model “A” Restorer’s Club (M.A.R.C.) ~ Free drive in style snacks and drinks for everyone ~ Event is free ~ Lot opens 6pm. Drive-In Style parking for collector cars while spots last ~ All others please bring blankets or chairs ~ Attendance Prizes, Games ~ Music ~ info: (314) 968-8377 or email ~ Clean Cut Creations, Des Peres Ave is off of Rock Hill Road, 1 Block south of Rock Hill Road and Manchester ~ WEBSTER GROVES, MO

JUL 13 SUN SSGT Jordan B. Emrick Memorial Car, Truck, and Bike Show ~ register 8an till Noon ~ Dash Plaques 1st 100 entries ~ 50/50 Drawing ~ Music ~ Great Food, Carnival, Beverages ~ held during the Hoyleton Hofbraufest Weekend ~ info: (618) 314-0778 ~ located: Route 177, 8 Miles Northeast of the Nashville/Carlyle Exit I-64 ~ HOYLETON, IL

JUL 13 SUN World’s Largest Catsup Bottle Festival Cruzin’ In Antiques Car Truck & Bike Show ~ register 10am till 1pm ~ Dash Plaques & Goody Bags 1st 150 Entries ~ Attendance Prizes ~ 50/50 Drawing benefits the Catsup Bottle ~ DJ and Live Music, The Quarter Draw Band ~ info: (618) 975-1372 ~ held at The American Legion Post 365, 1022 Vandalia St ~ COLLINSVILLE, IL

JUL 13 SUN 1932 Custom Go-Cart to be given away at the Collinsville Catsup Bottle Car Show ~ info: email or visit: http://e-clubhouse.org/sites/collinsville_evening/projects.php ~ COLLINSVILLE, IL

JUL 13 SUN 35th Annual Roxana Park Auto ~ co-sponsored by Time Machines Car Club ~ register 8am till Noon ~ Entry $15, Display or For Sale $10 ~ 1st 100 Entries receive Dash Plaque, Giveaways & Free 4×6 photo of Vehicle ~ Vendors Welcome, space for $25 ~ info: (618) 792-8901 or (618) 254-7485 ~ location: Roxana Park ~ ROXANA, IL



HOW MUCH WILL IT COST?

A Guide To Restoration Costs By Precision Restorations

Download Now

Follow us on
facebook twitter youtube
